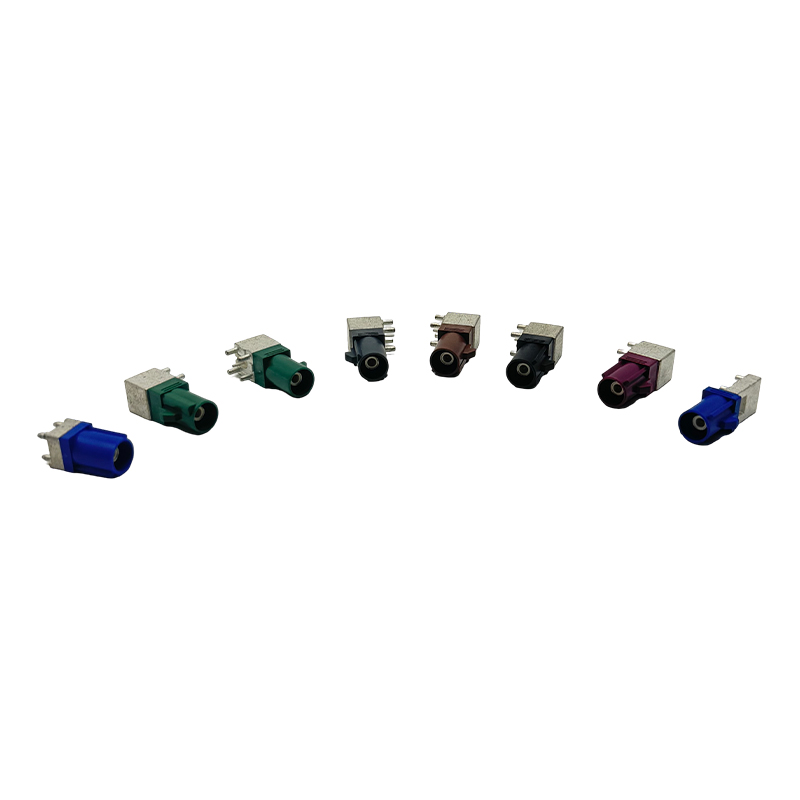

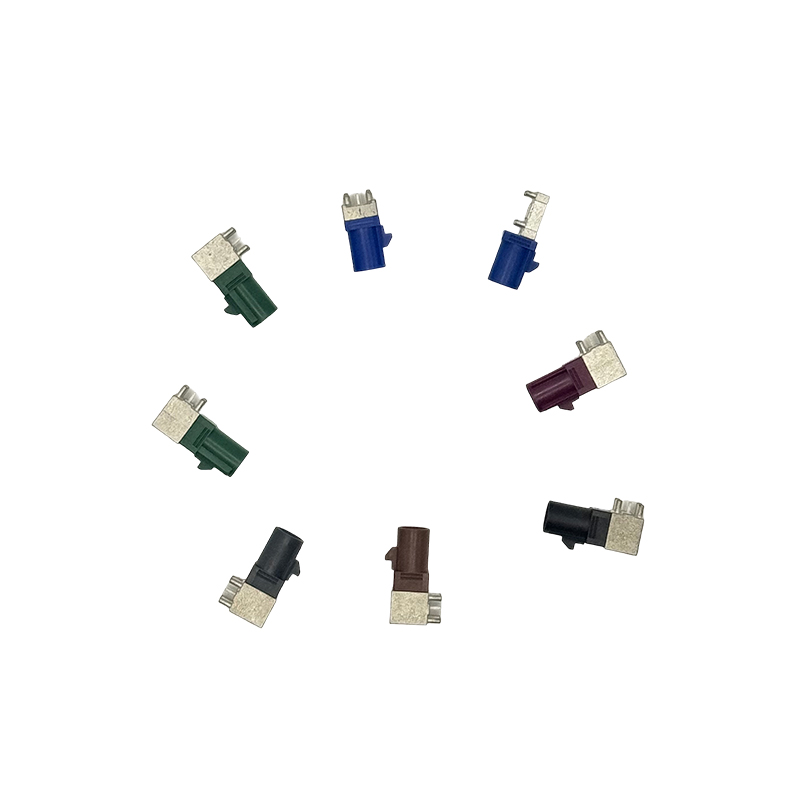

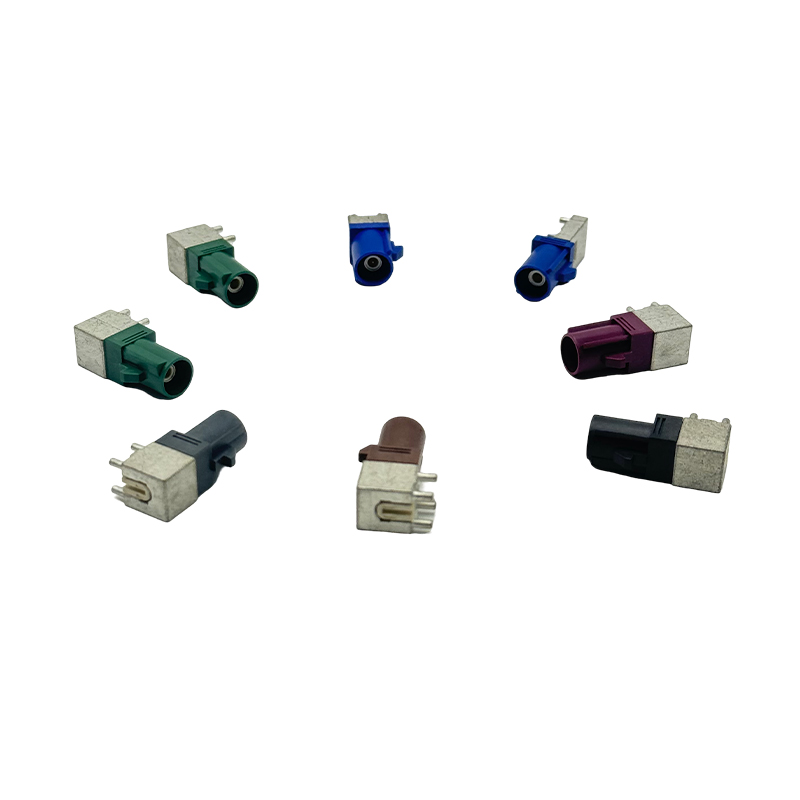

Fakra Connector Board End
The FAKRA connector board end is a terminal form used to fix and connect the FAKRA connector to the printed circuit board (PCB). It is mainly used in the automotive and communications fields, especially in the scenarios of high-frequency RF signal transmission.
Main features:
1. High-frequency transmission: The FAKRA connector board supports high-frequency signal transmission, which is usually used in RF applications with a frequency range of 1GHz to 6GHz, and is suitable for the transmission of GPS, LTE, Wi-Fi and other signals in cars.
2. Standardized design: FAKRA connectors have a standardized shell design and color coding system for easy identification and installation. The structural design of the board-end connector also complies with the FAKRA standard to ensure a perfect match with the line-end connector.
3. Stable connection: The board-end design uses high-strength materials to ensure the stability and reliability of the connection, which is suitable for the vibration environment in the car and reduces the risk of loose connections.
4. Simple installation method: The board-end FAKRA connector is usually installed on the PCB board by welding or surface mount technology (SMT). The installation process is quick and easy and suitable for mass production.
5. Anti-interference: The connector has good shielding performance, which can effectively prevent external electromagnetic interference and ensure the quality of signal transmission in high-frequency environments.
Main applications:
1. Vehicle antenna system: used to connect GPS, satellite broadcasting, AM/FM antennas, etc. in the car to ensure the stability of antenna signal transmission.
2. In-car entertainment system: In the audio, video, and navigation systems of cars, it is used to connect display screens, speakers, cameras and other components to transmit high-speed multimedia data.
3. Wireless communication module: Connect Bluetooth, Wi-Fi, 4G/5G and other wireless modules in the car to ensure the stable transmission of wireless communication signals.
4. Driver assistance system (ADAS): In advanced driver assistance systems, it is used for data transmission of radar, cameras and other equipment to support the safety monitoring function of the vehicle.
Due to its high-frequency performance, stability and standardized design, FAKRA board-end connectors are widely used in automobiles and communication equipment that require high reliability and high-frequency transmission.
