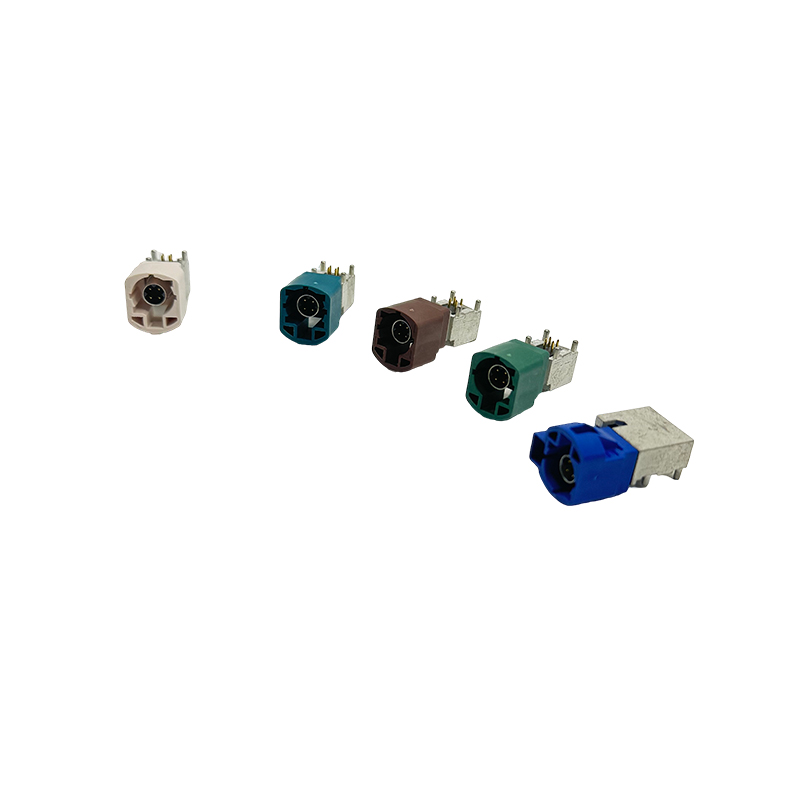

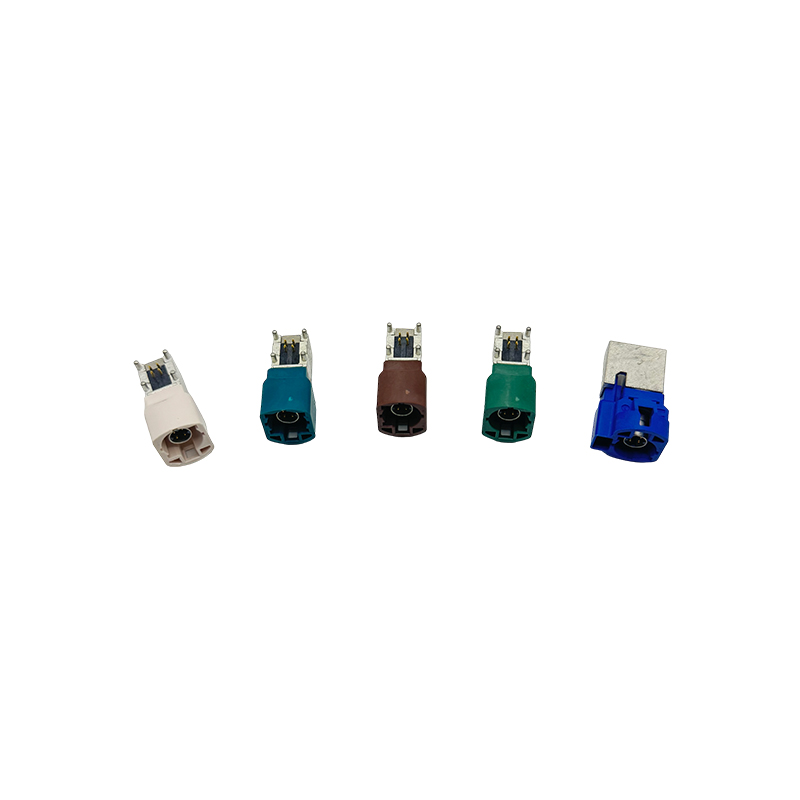

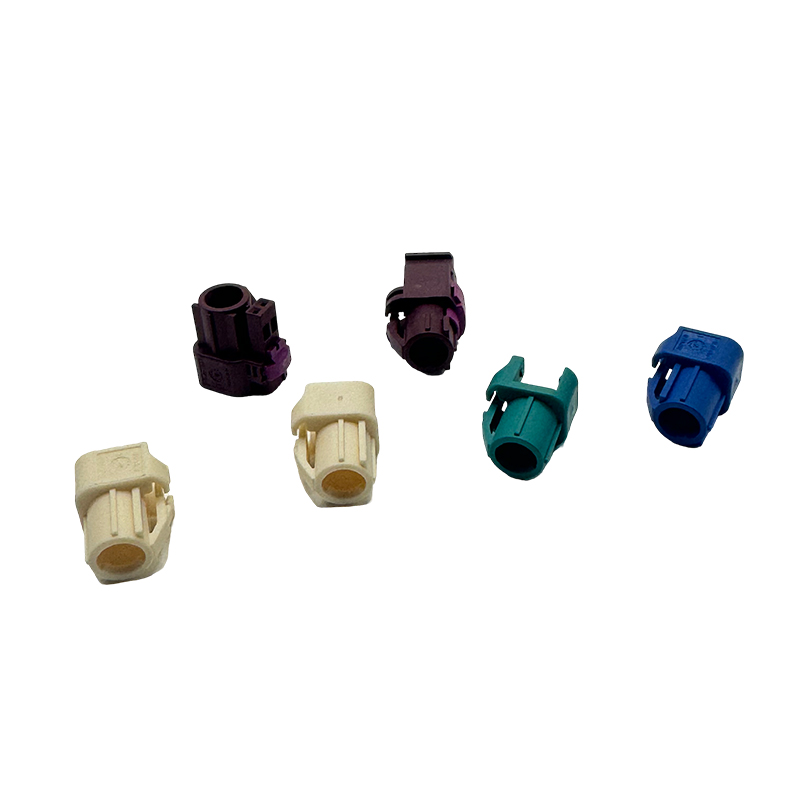

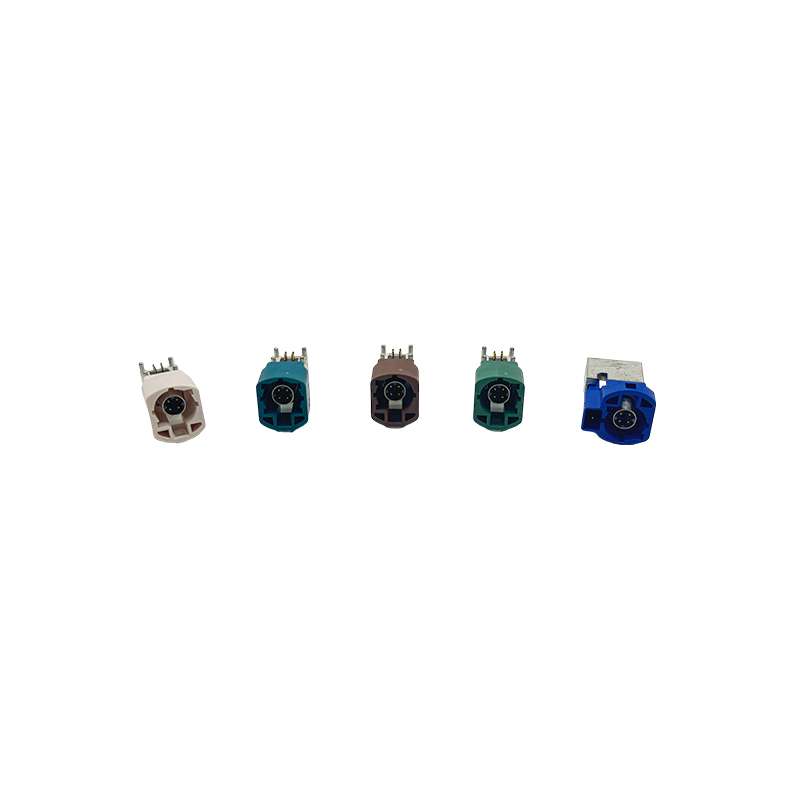

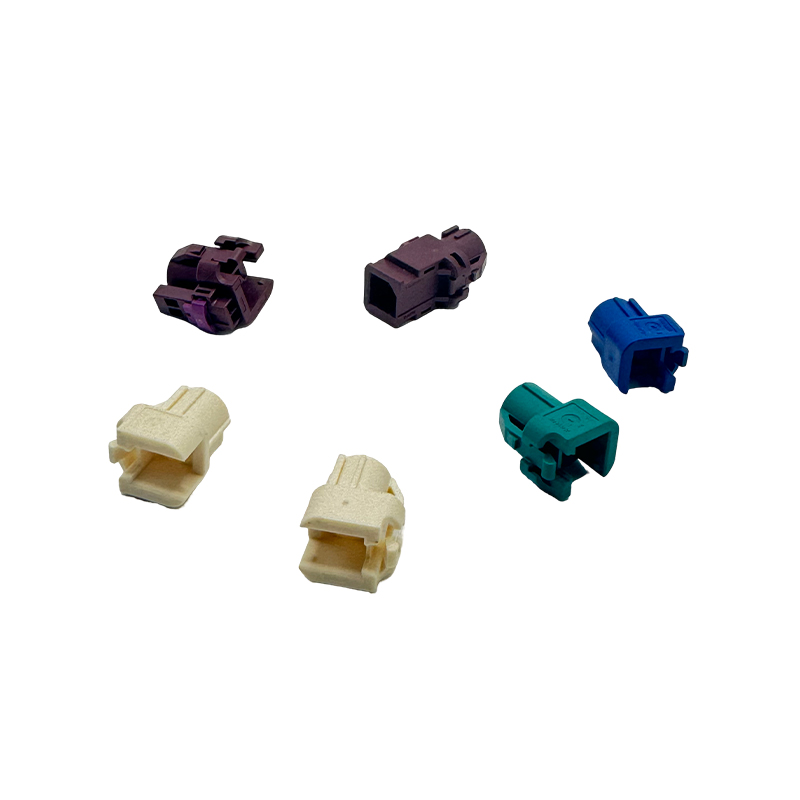

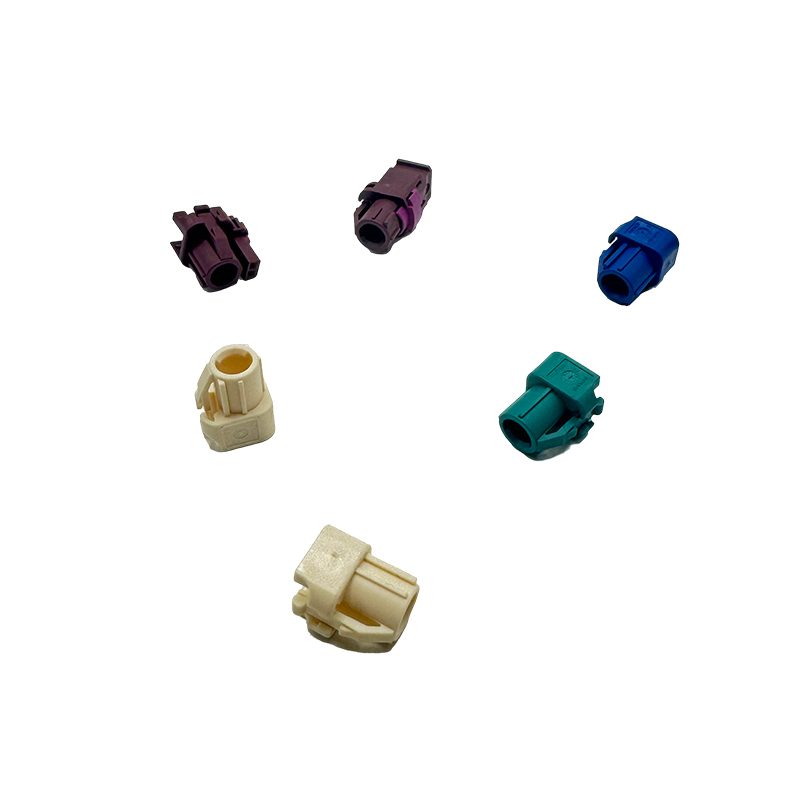

High-Speed Data Connector
High-Speed Data Connector is an automotive connector for high-speed data transmission. It is designed for high-frequency signal transmission in vehicle applications and is widely used in multimedia, driver assistance systems, communication modules, etc. HSD connector has high anti-interference performance and reliable electrical connection, and is suitable for the complex electromagnetic environment in the car.
Main features:
1. High-speed data transmission: High-Speed Data Connector support data transmission rates of up to several hundred Mbps or even higher, and are particularly suitable for in-vehicle infotainment systems, high-definition cameras, and other devices that need to transmit large amounts of data.
2. Differential signal transmission: High-Speed Data Connector use differential signal transmission, which can effectively reduce electromagnetic interference (EMI) and ensure signal integrity and stability, and are particularly suitable for the complex electromagnetic environment inside the car.
3. Shielded design: The connector has a metal shielding layer to further enhance the anti-interference performance and ensure that the quality of high-frequency signals is not affected during transmission.
4. Compact design: High-Speed Data Connector are relatively small in size, suitable for applications with limited space in vehicle-mounted equipment, and can also save wiring space.
5. Multiple interface configurations: High-Speed Data Connector support different signal channel configurations such as single-channel, dual-channel, and quad-channel, which can be selected according to different application requirements, with high flexibility.
6. High reliability: The design can withstand extreme environments such as vibration and impact of the vehicle to ensure the stability of the connection and the reliability of long-term use.
Main applications:
1. In-vehicle camera system: used to connect in-vehicle cameras, including reversing cameras, side-view cameras, front-view cameras and surround-view systems, supporting the transmission of high-definition images and videos.
2. Infotainment system: In the in-vehicle entertainment system, High-Speed Data Connector are used to connect displays, audio systems, navigation systems, etc., to transmit audio, video and data signals.
3. Driver assistance system (ADAS): connects sensors such as radar, LiDAR, and cameras to ensure the reliable transmission of high-speed data in the driver assistance system, and supports automatic driving and safety monitoring functions.
4. In-vehicle communication module: used for communication modules inside the vehicle, such as 5G, Wi-Fi, Bluetooth, etc., to support high-speed interconnection and data exchange of in-vehicle devices.
Advantages:
Strong anti-interference performance: suitable for use in automotive environments with strong electromagnetic interference.
Multi-channel support: supports multiple signal channels according to needs.
High bandwidth: adapts to the needs of in-vehicle systems for high-bandwidth data transmission.
With its high speed, reliability and anti-interference characteristics, High-Speed Data Connector have become important connectors for multimedia systems, communication modules and driver assistance systems in modern automobiles, adapting to the development trend of future automobile intelligence and networking.
