Waterproof Connector
Waterproof connectors are electrical connectors specifically designed to prevent water, moisture or other liquids from entering the connection point. They are usually used in equipment and environments that require weather resistance, waterproofness and dust resistance. They ensure the reliability of electrical connections in harsh environments. The following are the main features, technical parameters and application areas of waterproof connectors.
Main features
1. High level of protection:
Waterproof connectors usually have a high IP rating (Ingress Protection), such as IP67, IP68, etc., which means they can work normally in submerged or high humidity environments. IP67 means dustproof and can be immersed in 1 meter of water for 30 minutes, while IP68 means it can work in deeper water for a long time.
2. Corrosion-resistant materials:
Waterproof connectors are generally made of corrosion-resistant materials, such as nickel-plated copper, gold-plated contacts, or durable plastics to ensure long-term reliability in corrosive environments such as moisture or salt spray.
3. Sealing design:

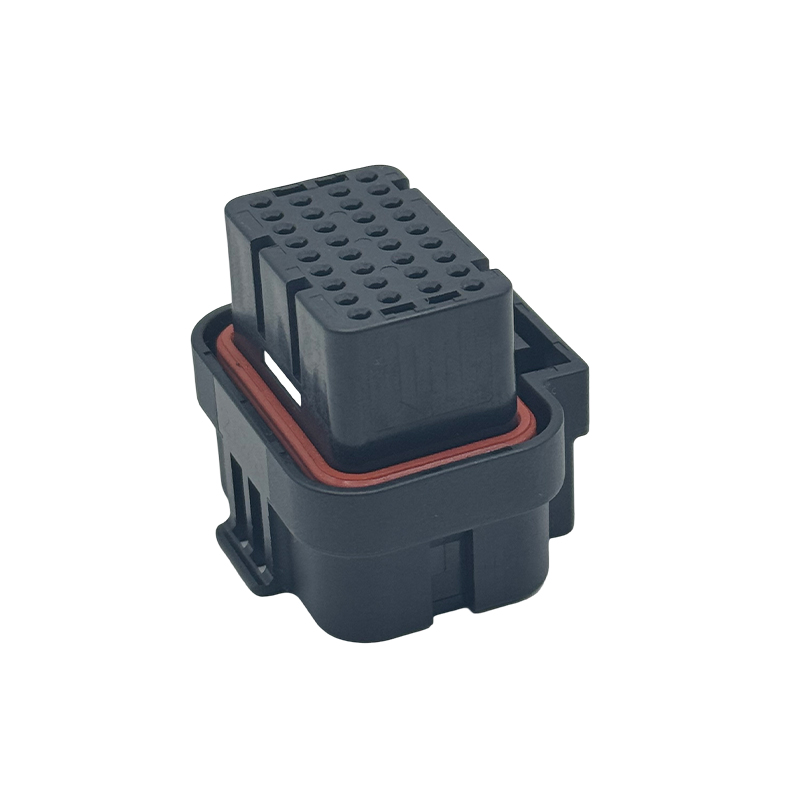

The connector's contact points and housing are specially sealed, usually with rubber rings or sealing gaskets to prevent moisture from entering.
4. Rugged and durable:
Waterproof connectors are usually impact-resistant and wear-resistant, and can withstand vibration, shock or mechanical stress in harsh environments.
5. Multiple connection types:
Waterproof connectors come in a variety of types, such as circular connectors, rectangular connectors, USB, RJ45, etc., suitable for different application scenarios.
Technical parameters
1. IP protection level:
Common protection levels include IP65 (dustproof and splashproof), IP67 (dustproof and immersion-proof), IP68 (dustproof and long-term immersion-proof), etc.
2. Operating temperature range:
Waterproof connectors usually operate in a wide temperature range, generally -40°C to +125°C.
3. Contact resistance:
To ensure electrical performance, the contact resistance of waterproof connectors is usually very low, generally less than 10 milliohms.
4. Rated voltage and current:
The rated voltage and current of waterproof connectors usually support a range from low voltage to high voltage depending on the design and application, and the current can range from 1A to 50A or even higher.
5. Mechanical life:
The plug-in and unplug life of waterproof connectors can usually reach 500 to 5000 times, and some special connectors have a longer service life.
Application areas
1. Automotive industry:
Waterproof connectors are often used in electrical systems in vehicles, such as lights, sensors, engine control units (ECUs), etc., especially those that need to work in humid or high temperature environments.
2. Ships and marine equipment:
In ships or underwater equipment, waterproof connectors are used for power connections, communication equipment, navigation systems, etc. to ensure trouble-free operation in underwater environments.
3. Outdoor lighting and security equipment:
Outdoor lighting, surveillance cameras, alarm systems, etc., which need to be exposed to rain, dust or humid environments for a long time, usually use waterproof connectors.
4. Industrial automation:
Waterproof connectors are used for industrial control systems, sensors, actuators and other equipment, especially in industrial environments that may be exposed to liquids or moisture.
5. Communication equipment:
In outdoor communication equipment (such as base stations, signal towers, etc.) that need to maintain a stable network connection, waterproof connectors ensure that the communication lines are protected from moisture.
6. New energy and solar energy systems:
Waterproof connectors are used in outdoor energy facilities such as solar power generation systems and wind power generation equipment to ensure that the power connection works normally in bad weather.
Summary
Waterproof connectors ensure stable electrical connections in harsh environments through sealed design, highly corrosion-resistant materials, and high IP protection levels. They are widely used in automotive, marine, industrial, outdoor equipment, and new energy fields, solving the challenges of moisture, corrosion, and vibration on connector performance. When choosing a waterproof connector, it is important to determine the appropriate protection level, material, and specification based on the requirements of the specific application scenario.
