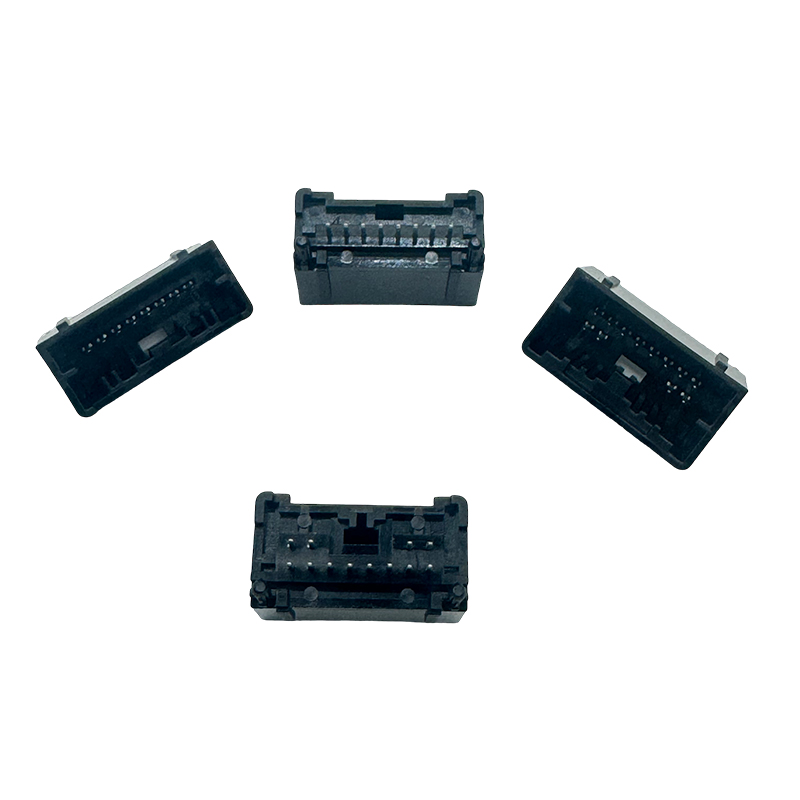

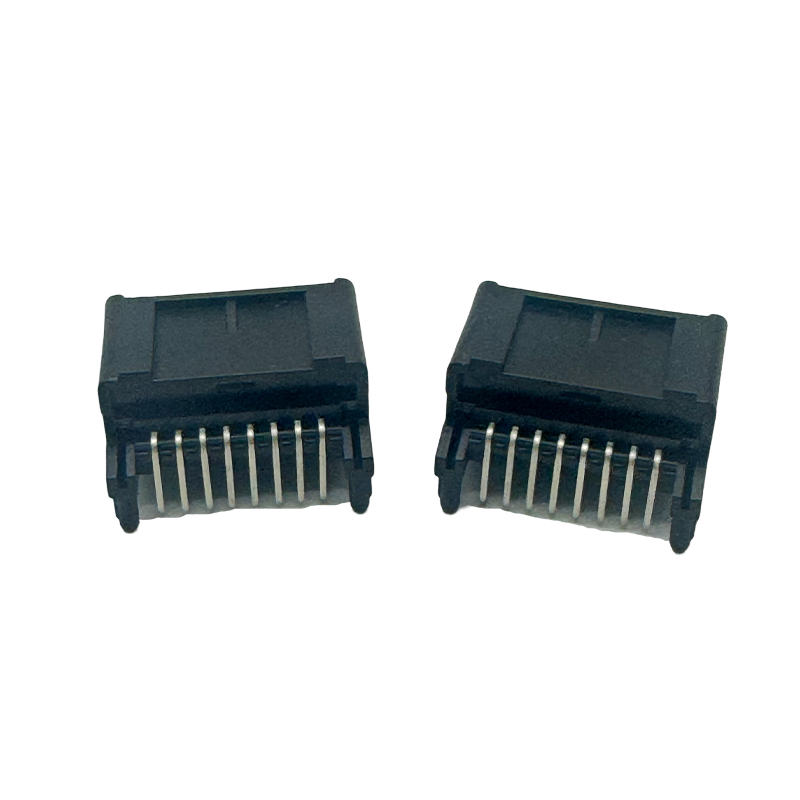

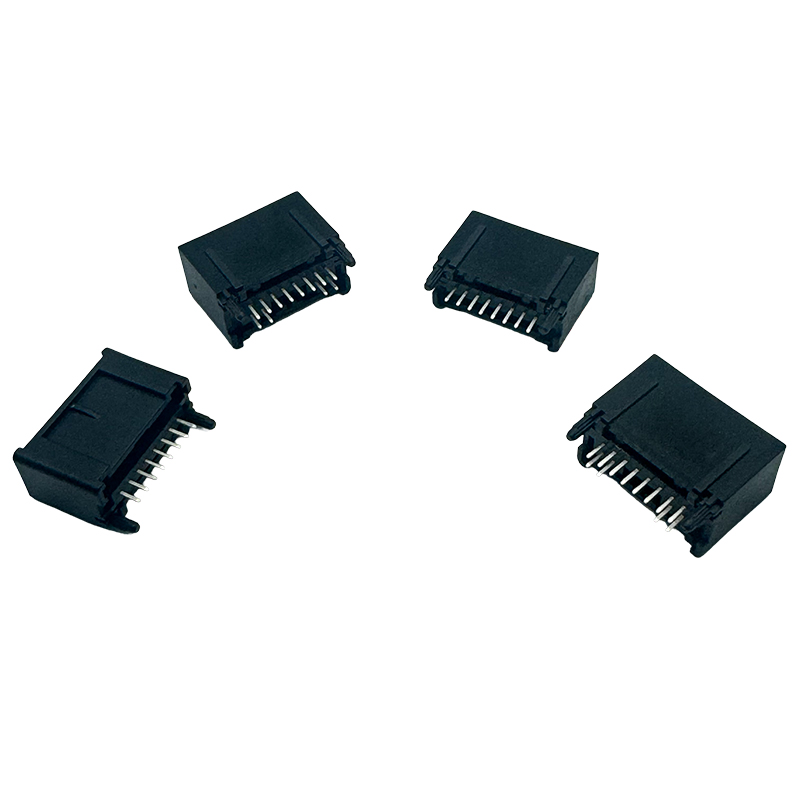

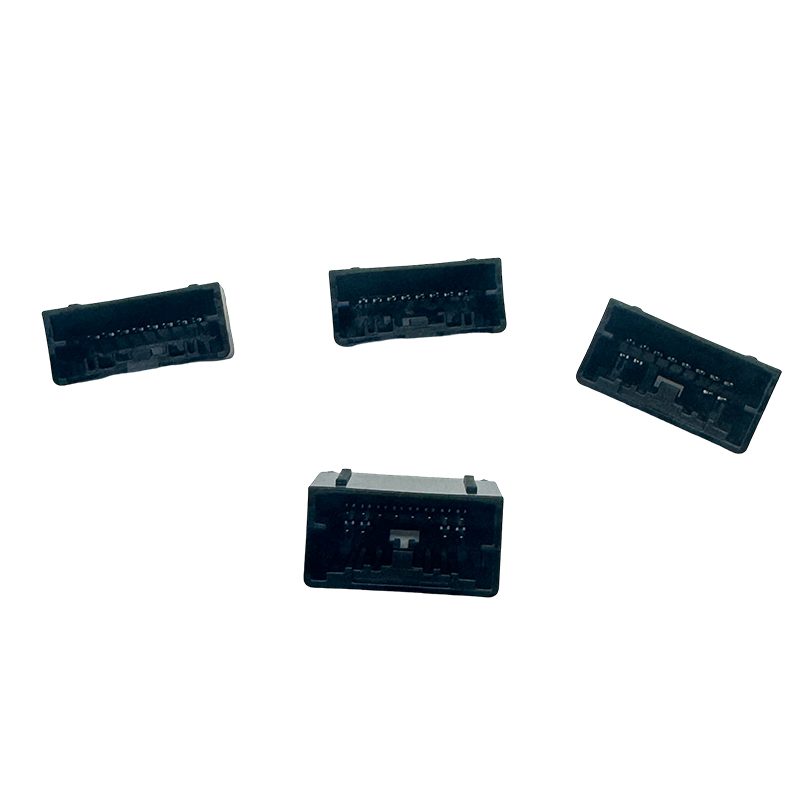

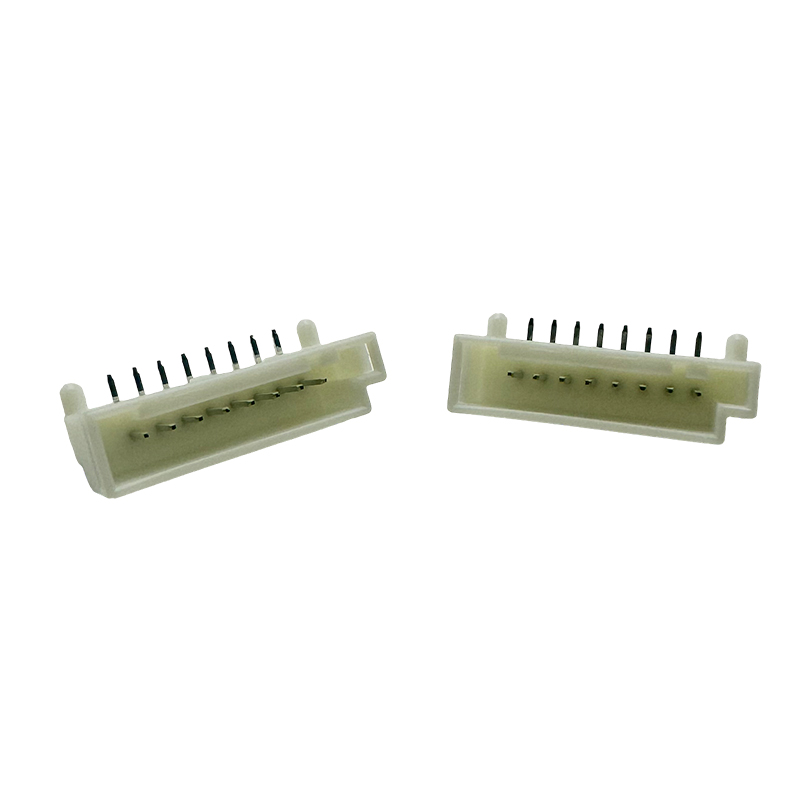

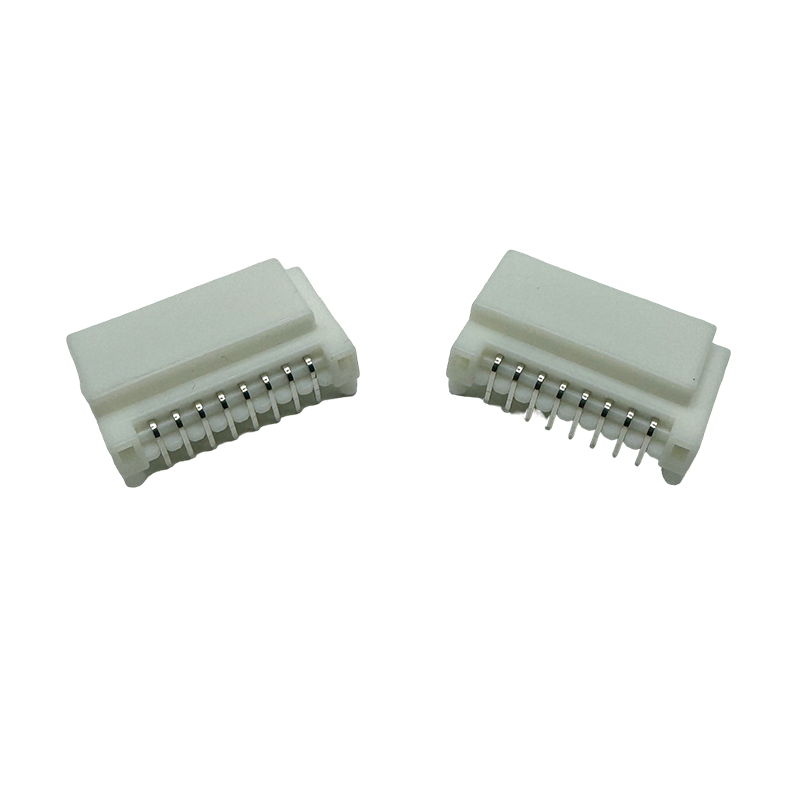

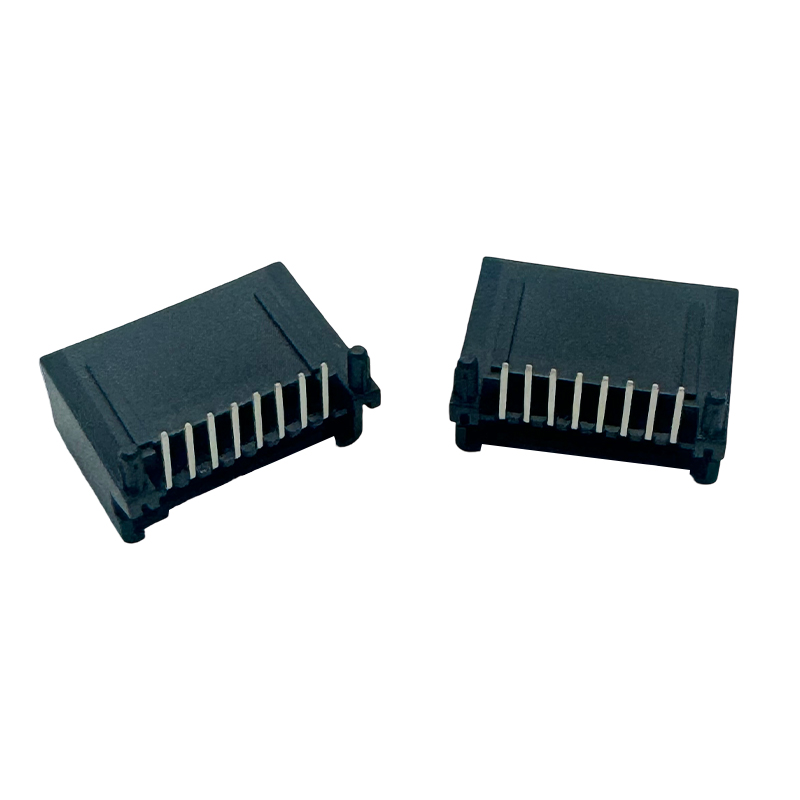

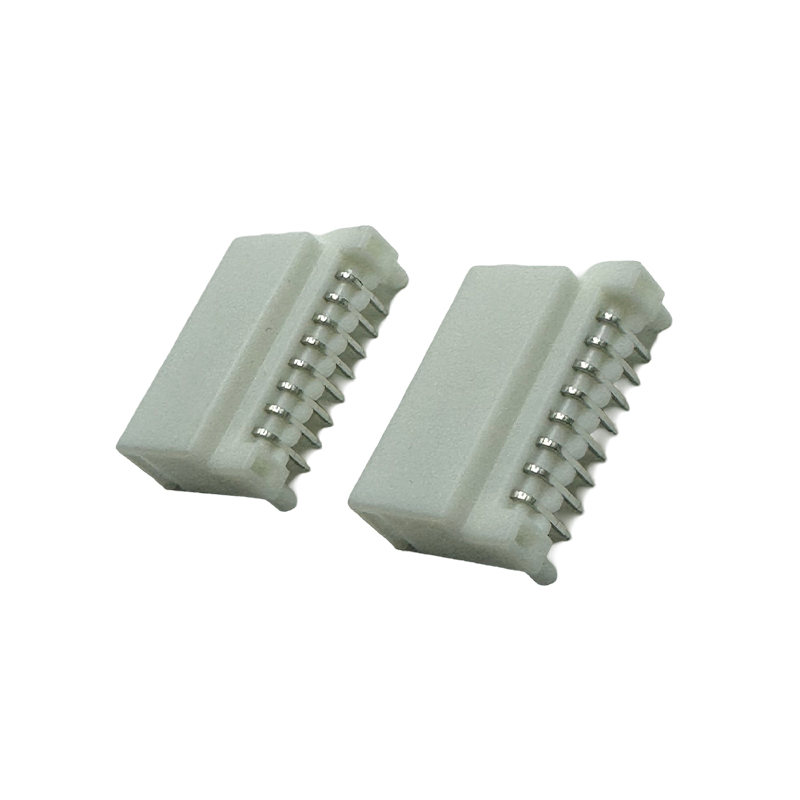

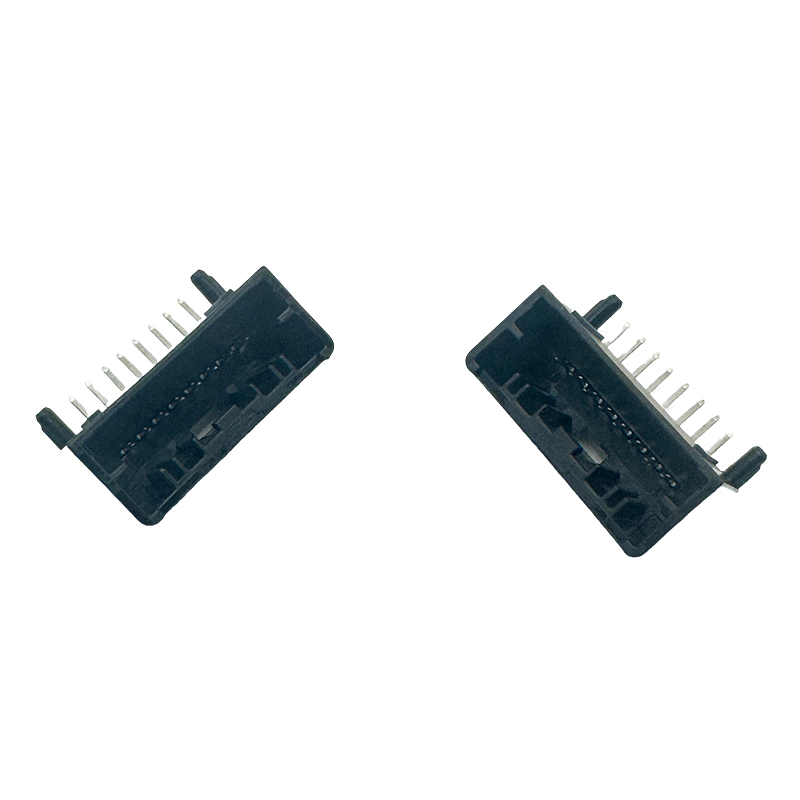

Wireless Charging Connector (15W)
The 8Pin wireless charging socket is a specific interface for wireless charging devices. It is usually connected to the circuit through multiple pins to transfer power to the coil of the wireless charging system, thereby realizing the wireless charging function of electromagnetic induction. This socket is widely used in devices that require efficient power transmission and is suitable for integration into wireless charging products such as chargers, mobile phones, and smart watches.
Multi-pin design:
Adopting 8-pin design, each pin is responsible for a specific electrical function (such as power supply, grounding, signal transmission, etc.), ensuring efficient power and data transmission.
Stable power transmission:
Providing stable current transmission through multiple pin connections, it is particularly suitable for wireless charging applications that require higher power, such as high-power wireless chargers or high-performance wireless charging devices.
Compact and precise:
The 8-pin design is usually compact and occupies a small space, which is suitable for the internal layout of modern miniaturized electronic devices, and the spacing of each pin is precise to ensure stable contact and signal transmission.
High durability:
Adopting high-quality metal materials (such as gold-plated pins) to enhance corrosion resistance and wear resistance, ensuring that good electrical contact performance can be maintained under long-term use.
Multiple protection design:
The pin holder usually has functions such as overload protection, short circuit protection and overheating protection to ensure the safety of equipment and users during high-power charging.
Application scenarios
Wireless charging equipment:
Suitable for various wireless charging devices, such as wireless charging plates, car wireless chargers, desktop wireless charging modules, etc., especially devices that require efficient power transmission.
Mobile phones and smart devices:
8Pin wireless charging pin holders can be embedded in electronic devices such as smartphones, tablets, smart watches, etc., to achieve fast connection and charging with external wireless chargers.
In-vehicle charging system:
In in-vehicle wireless charging applications, this type of pin holder can ensure stable wireless charging of devices in mobile environments.
Industrial and medical equipment:
In some industrial equipment or medical equipment that require high charging reliability, the 8Pin pin holder can ensure stable power transmission and signal feedback functions.
Summary
The 8Pin wireless charging pin holder provides higher power transmission capability and stability, and is suitable for devices that require efficient wireless charging. Its compact design, durable materials and high transmission efficiency make it an indispensable core component in modern wireless charging systems.
Number of pins: 8 pins (Pin).
Working voltage: Supports DC 5V-20V, suitable for a variety of wireless charging applications.
Maximum current: can transmit up to 5A current, suitable for wireless charging devices that require high power.
Operating temperature: -20°C to +85°C, suitable for various use environments, especially maintaining stability in scenarios with large temperature changes.
Contact resistance: ≤ 30mΩ, ensuring low resistance to reduce energy loss and improve transmission efficiency.
Lifespan: more than 1000 plug-in and unplug lifespan, ensuring reliability under long-term frequent use.
