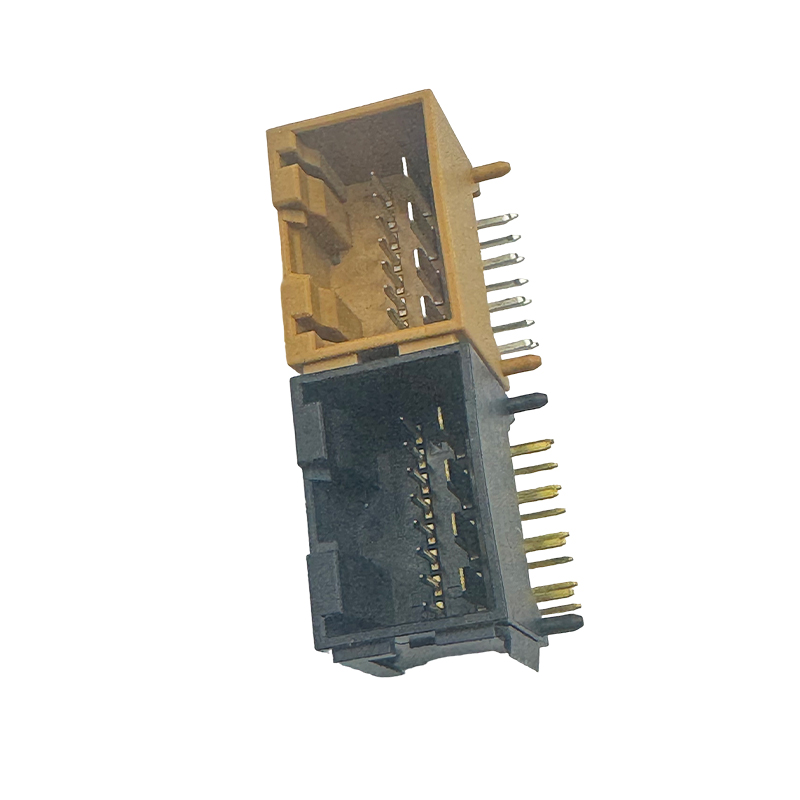

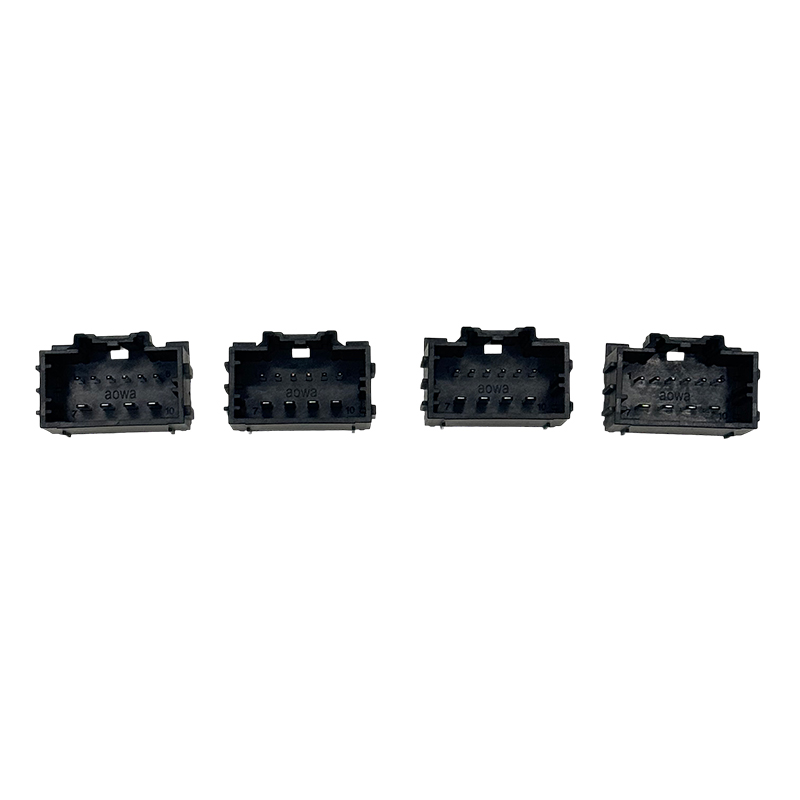

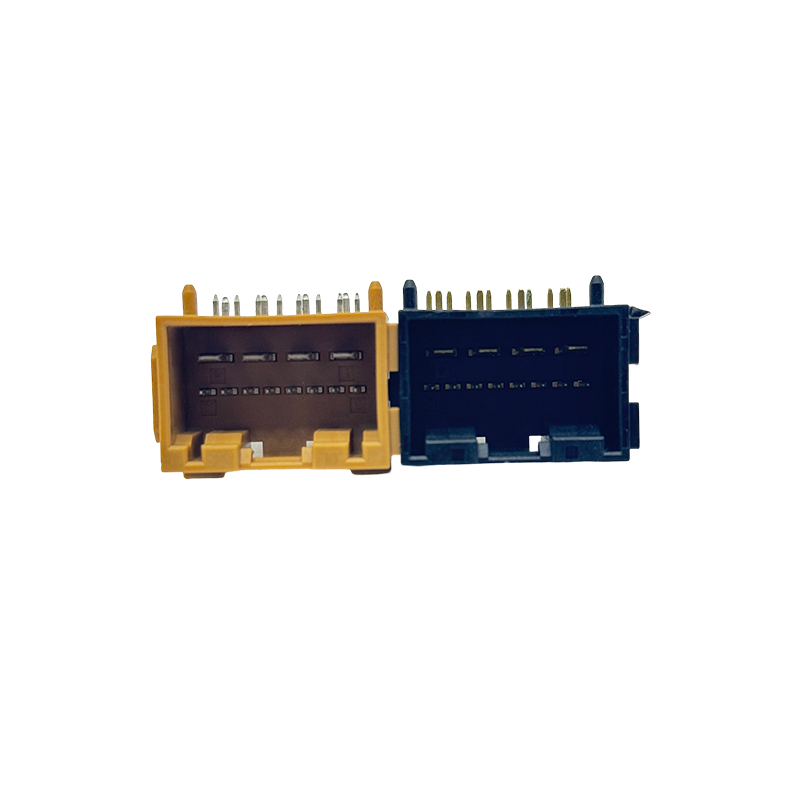

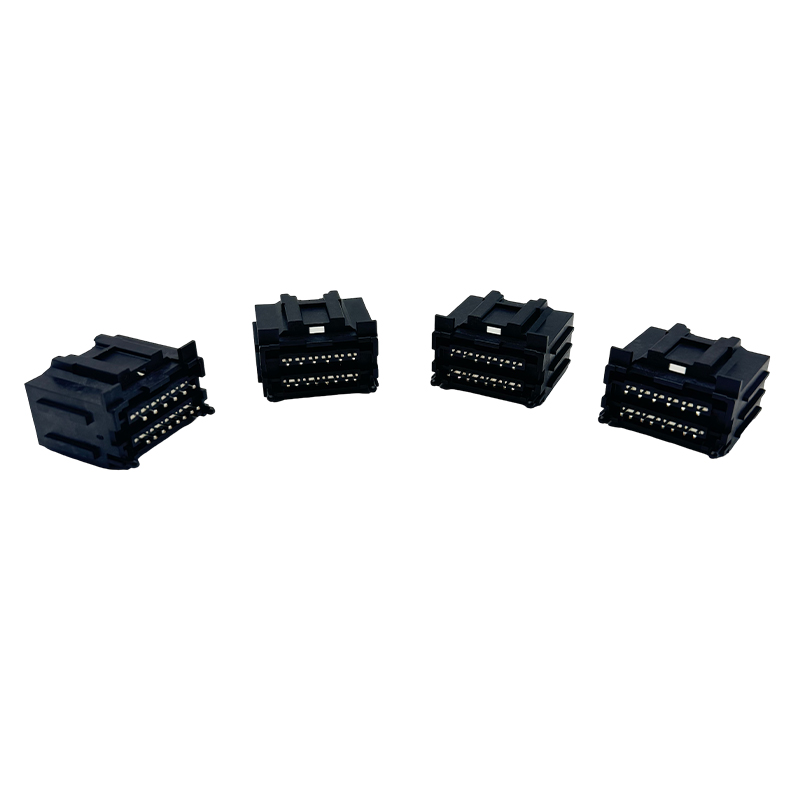

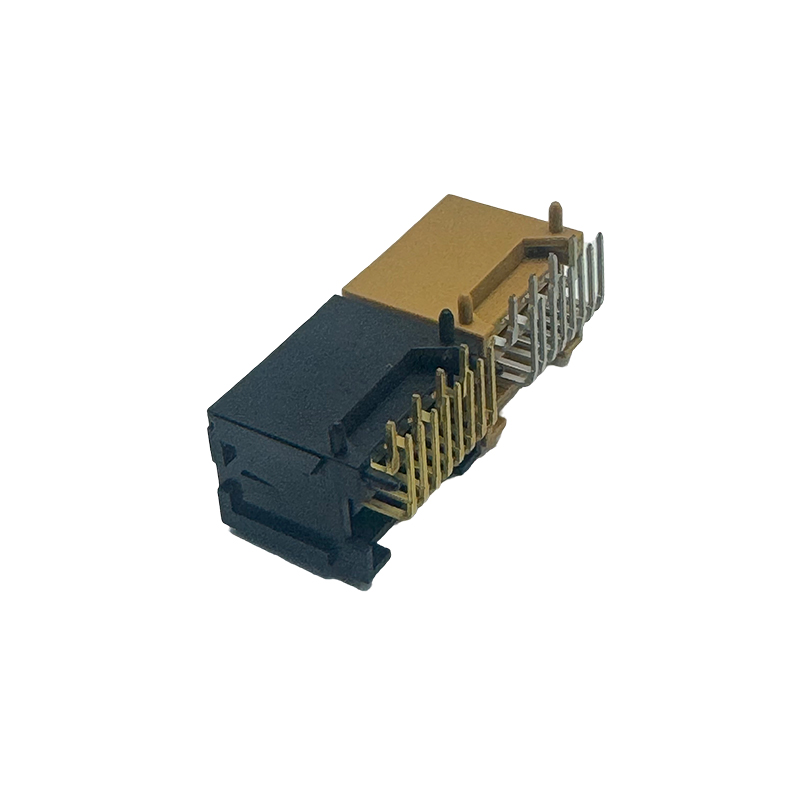

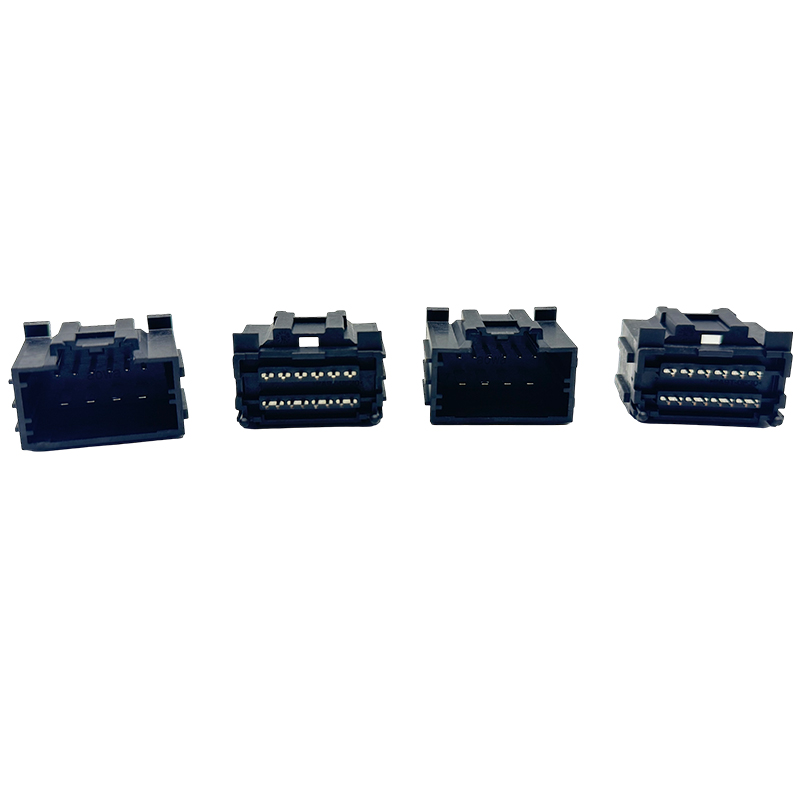

Wireless Charging Connector (50W)
The 12Pin wireless charging pin holder is used to support wireless charging applications up to 50W and is usually integrated into high-power wireless charging devices such as smartphones, tablets or car wireless charging systems. This design can handle power transmission and data communication at the same time, and can provide a stable, fast and efficient wireless charging experience.
High power support:
Maximum support of 50W wireless charging output, suitable for devices with high demand for fast charging, fast charging speed and high efficiency.
Multifunctional 12Pin design:
The 12 pins not only support power transmission, but also data communication, realizing intelligent charging control and feedback (such as current, voltage monitoring, temperature detection, etc.).
Intelligent power regulation:
Built-in intelligent chip, automatically adjusts the output power, provides appropriate charging current and voltage according to device requirements, and ensures safe and efficient charging.
Efficient heat dissipation:
When supporting 50W high-power wireless charging, it is designed with a good heat dissipation structure to avoid efficiency reduction or safety problems caused by high temperature during charging.
Safety protection:
Provides multiple protection functions, including overcurrent protection, overvoltage protection, short circuit protection, overheating protection and foreign object detection (FOD), to ensure safety during charging.
Durability and stability:
Use corrosion-resistant and highly conductive materials such as gold-plated pins to provide high-strength durability and contact stability, suitable for long-term and high-frequency use.
Application scenarios
High-end smartphones and tablets:
Smartphones and tablet devices that support high-power wireless charging, especially flagship devices that require 50W fast charging, can significantly reduce charging time.
In-car wireless charging system:
Integrate a 12-pin wireless charging module in the car to support 50W fast wireless charging, meeting the needs of fast charging of multiple devices in the car.
Laptop:
Some thin and light laptops that support wireless charging may integrate 50W or higher power wireless charging functions, and the 12-pin pin holder design can provide efficient charging for such devices.
Smart home devices:
Used for wireless charging smart devices (such as smart speakers, wireless charging stations, etc.), providing reliable power transmission and device management.
Industrial equipment and medical devices:
In industrial or medical equipment that requires high power and stable charging, the 12-pin 50W wireless charging pin holder can ensure that the equipment operates safely and stably in complex environments.
Summary
The 12-pin 50W wireless charging pin holder is an efficient and versatile wireless charging interface design suitable for scenarios that require fast charging and complex electrical connections. Its high power support, intelligent control, and safety protection functions make it an ideal choice for high-end wireless charging devices, ensuring safe and stable power transmission while fast charging.
Number of pins: 12 pins, each pin is responsible for a specific power or data transmission function.
Maximum output power: 50W, supports fast wireless charging, compatible with devices with different power requirements, such as 10W, 15W, 30W, etc.
Input voltage: DC 5V-20V, adapt to different power specifications.
Transmission efficiency: ≥80%, ensuring efficient energy transmission and reducing energy loss.
Transmission distance: ≤ 10 mm, the device needs to be placed within an appropriate distance range for efficient charging.
Operating temperature range: -10°C to +60°C, suitable for use in a variety of environments, ensuring long-term stable operation at high power.
Contact resistance: ≤ 20mΩ, reducing energy loss and improving charging efficiency.
Service life: ≥2000 plug-in and unplug life, ensuring reliable performance in long-term high-frequency use.
