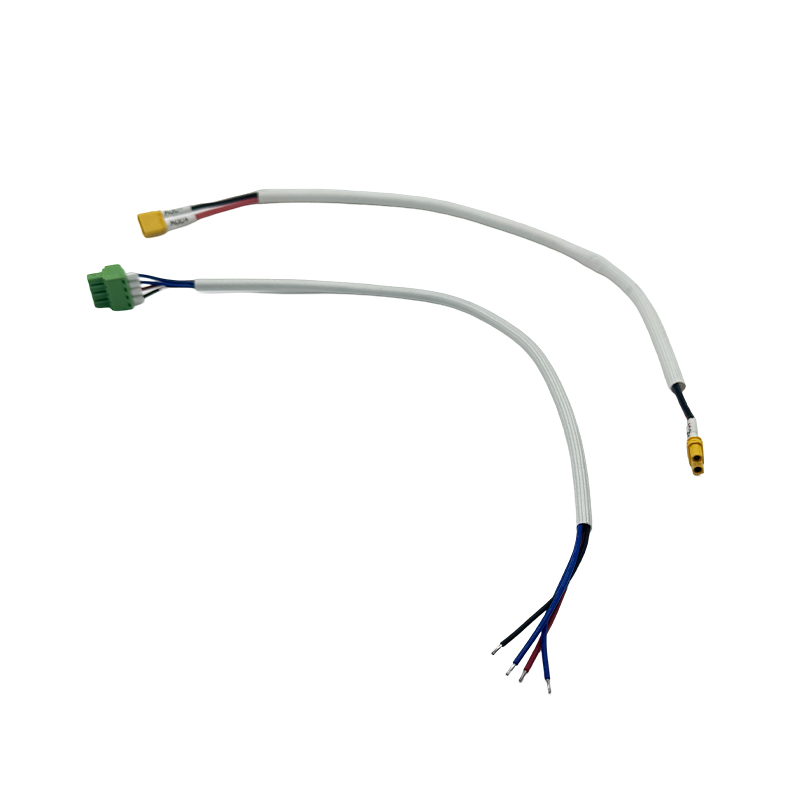

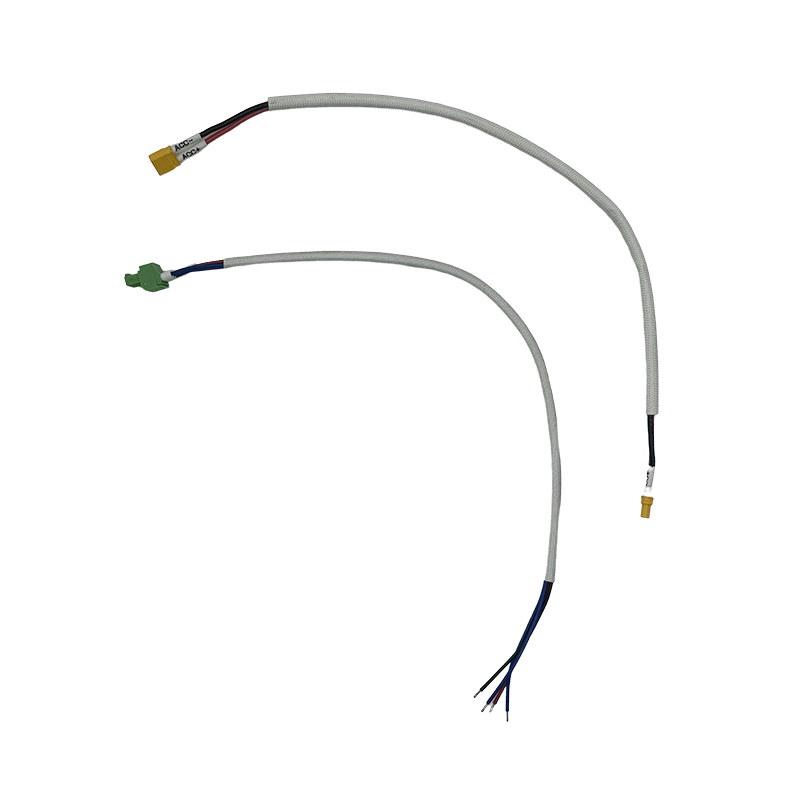

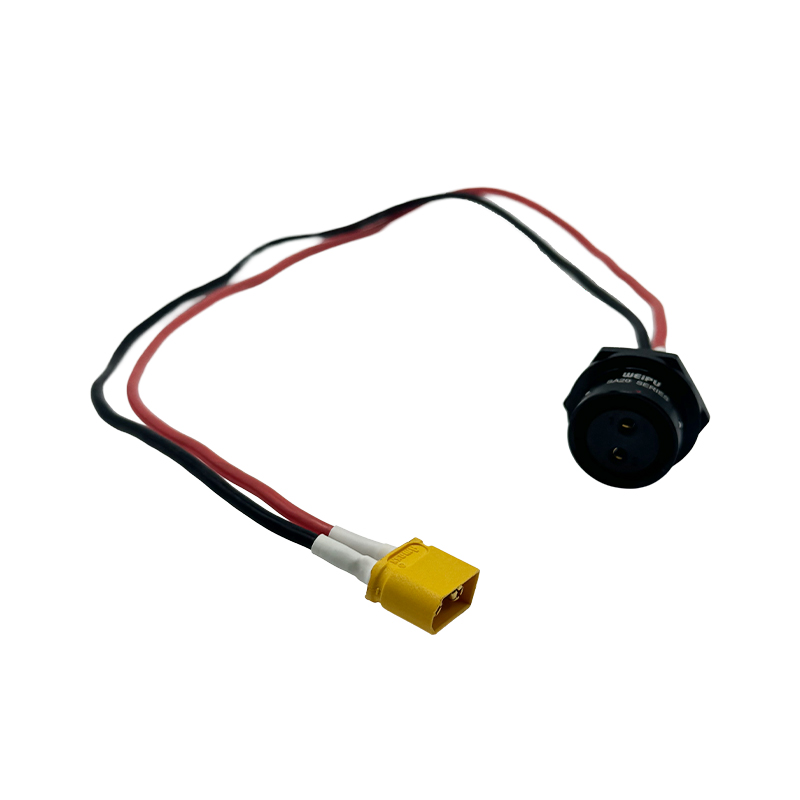

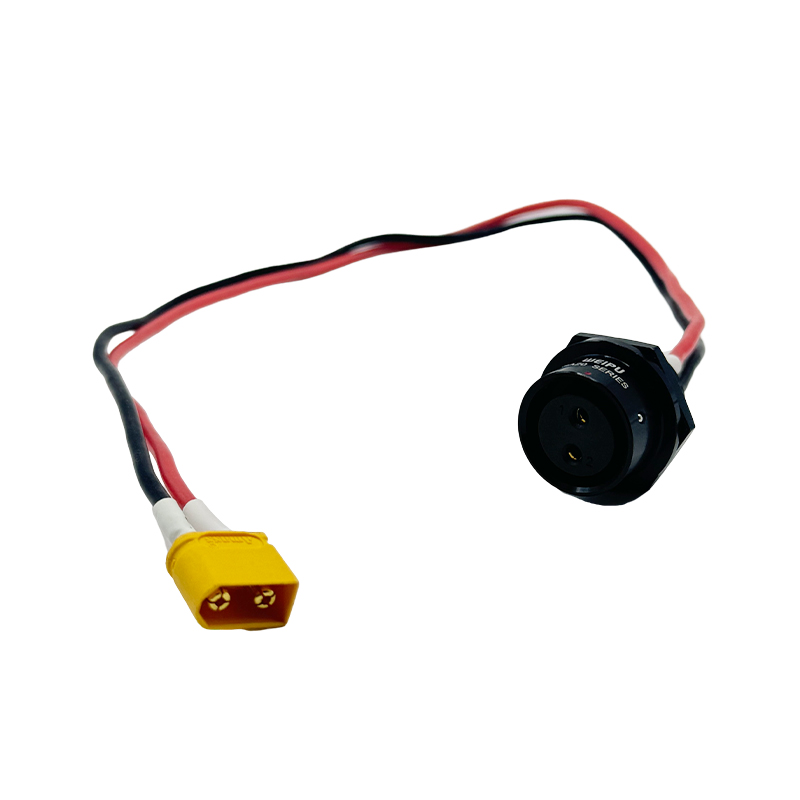

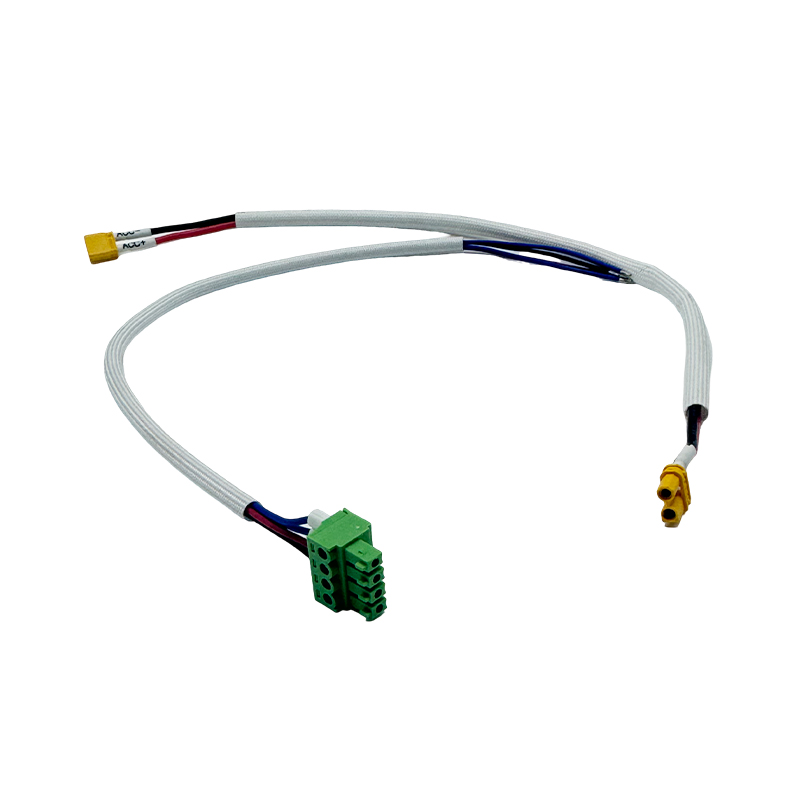

New Energy Storage Wiring Harness
Aowa New Energy Energy Storage Harness is a high-performance cable harness designed and manufactured by Aowa specifically for new energy storage systems, and is widely used in solar energy storage systems, wind energy storage systems, electric vehicle charging stations, etc. These harnesses ensure efficient transmission and management of electricity by connecting batteries, inverters, charging equipment and other electrical components.
1. Product Features
High conductivity:
The use of high conductivity copper material ensures low resistance and efficient energy transmission under high current conditions, reducing energy loss.
High temperature and corrosion resistance:
The use of high-quality insulating materials has high temperature and corrosion resistance, adapts to harsh environmental conditions, and ensures long-term and reliable operation.
Flexible design:
The wiring harness is flexible in design, easy to install and wire, and adapts to different equipment layouts and usage requirements.
High safety:
The wiring harness has multiple safety protection measures, such as overload protection, short circuit protection and waterproof design, to ensure safety in various working environments.
Reliability:
After rigorous testing and certification, Aowa's wiring harness has high reliability, ensuring stability during long-term operation.
2. Application scenarios
Home energy storage system:
In the home photovoltaic power generation system, Aowa wiring harness connects solar panels, energy storage batteries and inverters to ensure efficient energy storage and use.
Commercial and industrial energy storage solutions:
Energy storage systems for commercial buildings and industrial facilities connect batteries and inverters to ensure balanced grid load and improve energy efficiency.
Electric vehicle charging station:
Integrated in electric vehicle charging facilities, it is responsible for the connection between batteries, inverters and charging piles, providing safe and fast charging solutions.
Microgrid system:
In microgrid applications, wiring harnesses are used to connect renewable energy generation equipment and loads to ensure stable and efficient distribution of electricity.
Mobile energy storage equipment:
Applied to equipment such as portable power supplies and mobile power stations, providing flexible cable connection and management solutions.
3. Installation precautions
Choose the right wiring harness:
Choose the right Aowa wiring harness according to the voltage and current requirements of the energy storage system to ensure system safety and efficiency.
Insulation and protection:
Ensure that all connection parts are well insulated to prevent leakage and short circuit.
Reasonable wiring:
Wiring harnesses should avoid sharp turns and tensioning to protect the flexibility of the cable and extend its service life.
Regular inspection:
Regularly check the status of the wiring harness to ensure reliable connections and avoid failures caused by aging or damage.
4. Summary
Aowa New Energy Energy Storage Wiring Harness is a key component in modern energy storage solutions, ensuring efficient storage and management of energy through its efficient and safe cable connections. Its durability, flexibility and reliability make it increasingly widely used in the new energy field to meet the growing demand for renewable energy.
Rated voltage:
Generally 300V to 1000V, depending on the design requirements of the energy storage system.
Rated current:
Usually in the range of 10A to 1000A, select the appropriate specification according to the application scenario and current requirements.
Temperature range:
The operating temperature is usually -40°C to +85°C, suitable for various climate conditions.
Cable specifications:
The cross-sectional area of the cable can be selected according to the power requirements, and the common specifications range from 0.5mm² to 100mm².
Connector type:
Use high-power connectors such as MC4, Anderson, XT60, etc. to ensure reliable electrical connections.
