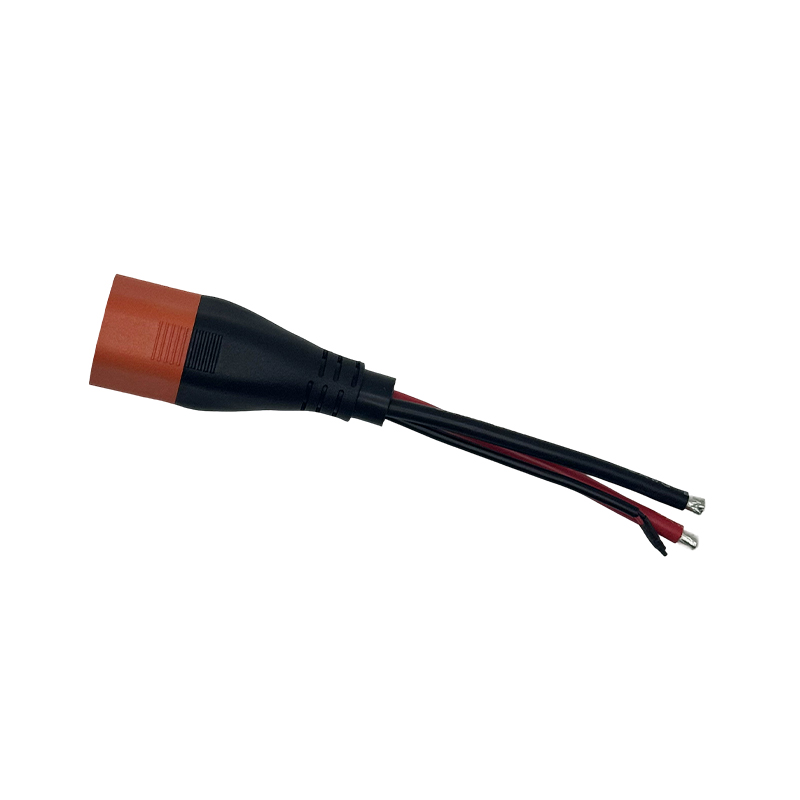

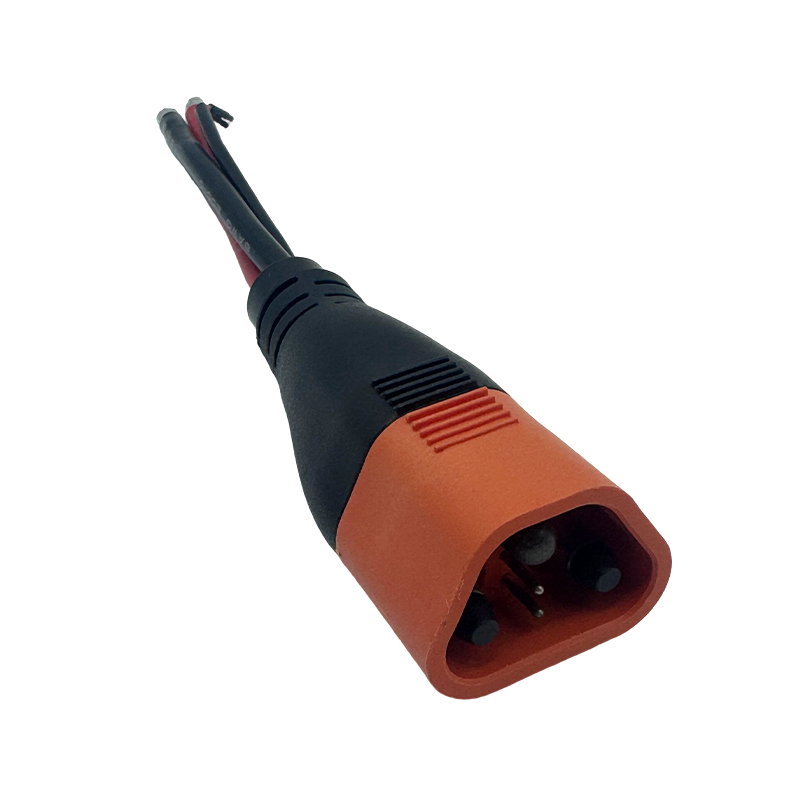

New Energy Drone Wiring Harness
Aowa New Energy UAV wiring harness is a cable harness designed and manufactured by Aowa specifically for UAVs, aiming to achieve efficient connection and management of various electrical components in UAV systems. These harnesses play a key role in new energy UAVs (such as electric vertical take-off and landing (eVTOL) UAVs), ensuring the stable and safe operation of components such as batteries, motors, controllers, sensors, etc.
1. Product Features
High conductivity:
The use of high conductivity copper materials ensures low resistance under high current and high load conditions, improving the energy efficiency of the system.
Lightweight design:
The wiring harness design focuses on lightweight, reducing the overall weight of the drone, improving flight performance and endurance.
High temperature and corrosion resistance:
The use of high temperature and corrosion resistant materials adapts to harsh working environments and ensures long-term reliable performance.
Flexibility and adaptability:
The design is flexible, easy to install and wire, and can adapt to drones of different models and structures.
Safety:
Equipped with multiple protection mechanisms such as overload protection and short circuit protection to ensure the safety and stability of the drone during flight.
2. Application scenarios
Electric vertical take-off and landing (eVTOL) drones:
In emerging electric vertical take-off and landing drones, the wiring harness is used to connect the battery, propulsion system and control system to ensure efficient power management and transmission.
Agricultural drones:
In agricultural applications, the drone wiring harness is responsible for connecting sensors, cameras and power systems to support the implementation of precision agriculture technology.
Express and logistics drones:
Connect the power system and control unit of the drone in the harness to ensure the safe and stable flight of the drone during transportation.
Rescue and monitoring drones:
In emergency rescue and environmental monitoring, the harness is used to connect various sensors and communication equipment to ensure real-time data transmission and stability of operation.
3. Installation precautions
Choose the right harness:
Choose the right Aowa harness according to the electrical system requirements of the drone to ensure safety and efficiency.
Reasonable wiring:
Avoid sharp turns and tightening when wiring to protect the flexibility of the cable and reduce the risk of damage.
Insulation and protection:
Ensure that all connection parts are well insulated to prevent leakage and short circuit to ensure flight safety.
Regular maintenance:
Check the harness status regularly to ensure a secure connection and replace aging or damaged parts in time.
4. Summary
Aowa New Energy UAV harness plays an important role in the drone system, ensuring the safe and stable operation of each electrical component through efficient cable connection. Its lightweight design and high reliability make it suitable for various types of drones, support the growing demand for drone applications, and provide a solid foundation for the development of drones.
Technical Parameters
Rated voltage:
Usually 12V to 60V, depending on the electrical system design requirements of the drone.
Rated current:
The rated current range of the harness is usually between 10A and 100A, and is selected according to the motor and load requirements of the drone.
Operating temperature range:
The operating temperature range is generally -40°C to +85°C to ensure normal operation under various climatic conditions.
Cable specifications:
The cross-sectional area of the cable can range from 0.5mm² to 10mm² to meet different power requirements.
Connector type:
Use high-reliability connectors such as XT60, Anderson, etc. to ensure a stable electrical connection.
