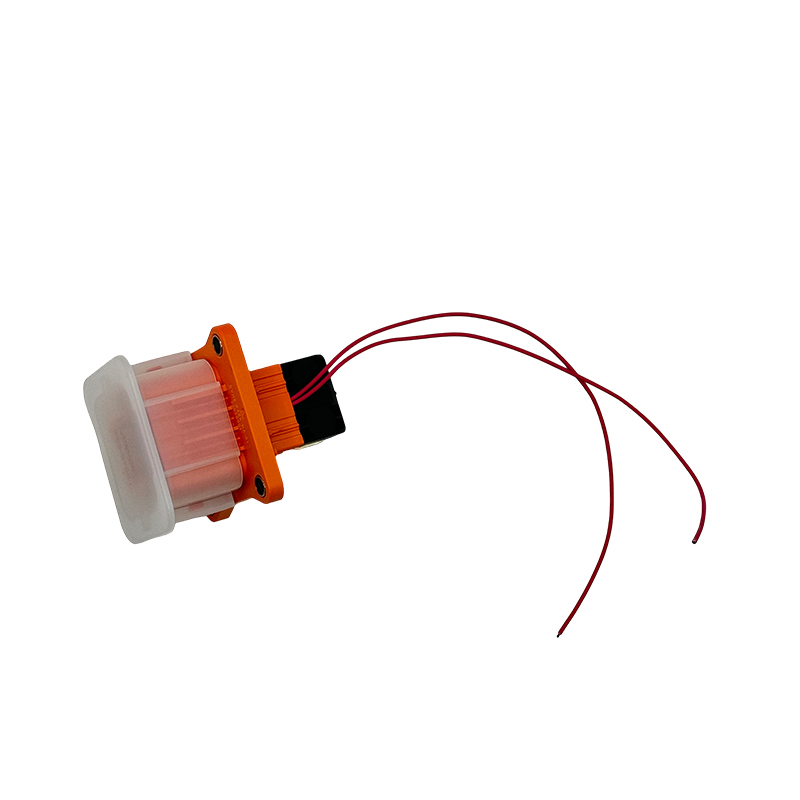

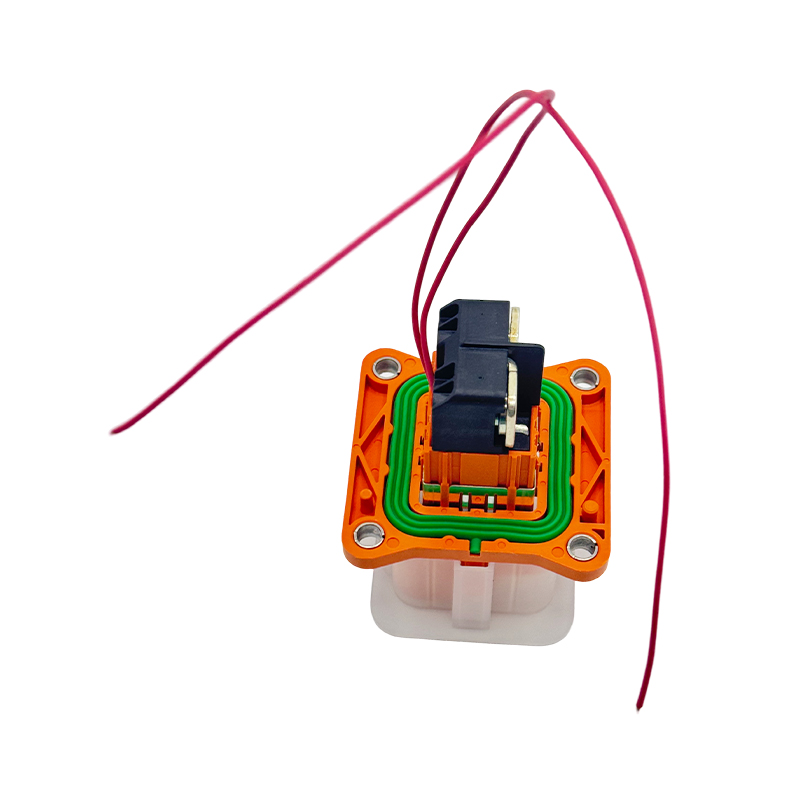

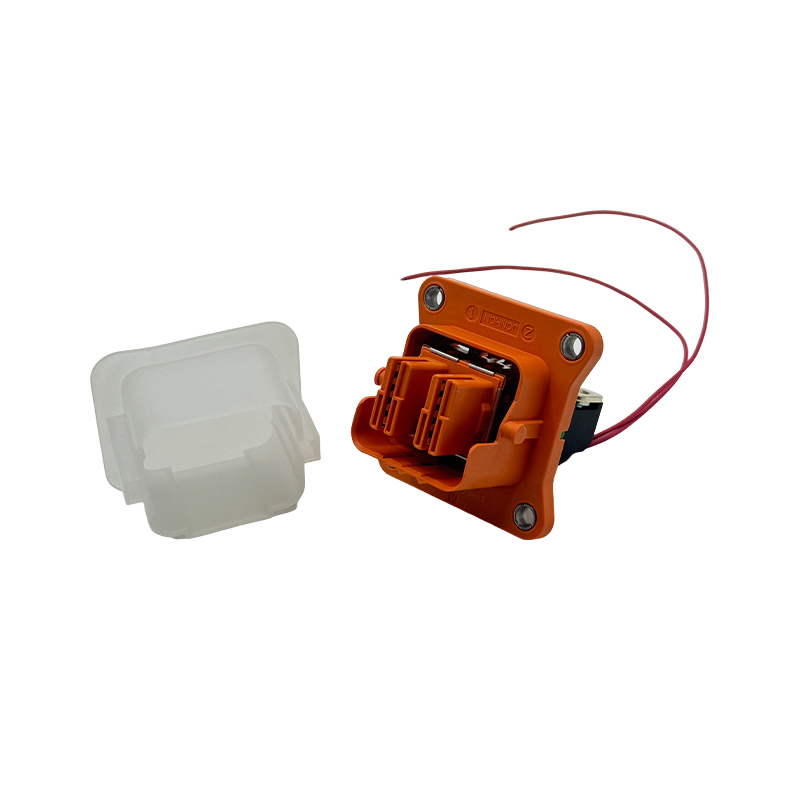

High Voltage Electric Control Wiring Harness Connector
Aowa New Energy high-voltage electric control harness connector is a cable connector designed specifically for new energy electric vehicles and related high-voltage electrical systems. It aims to achieve safe and efficient power transmission between high-voltage equipment such as batteries, motors, and inverters.
1. Product Features
High voltage tolerance:
Designed for high voltage systems, the tolerance range is usually 300V to 1000V, meeting the needs of high voltage environments such as new energy vehicles.
Excellent insulation performance:
Using high-quality insulation materials to ensure safe operation under high voltage and high current, effectively preventing electrical accidents.
High temperature resistance and corrosion resistance:
The wiring harness and connector have the characteristics of high temperature resistance and corrosion resistance, and can work stably for a long time in harsh working environments.
Waterproof and dustproof design:
The product usually reaches IP67 or higher protection level, suitable for outdoor use, and prevents water and dust from intrusion.
Vibration and impact resistance:
Designed to meet the vibration resistance requirements of new energy vehicles during driving, ensuring stable connection under severe bumps.
Modular structure:
Easy to install and replace quickly, reduce maintenance time, and improve use efficiency.
2. Application scenarios
New energy vehicles:
Connect the power battery, motor and inverter of electric vehicles to support efficient power transmission and control.
Electric buses and commercial vehicles:
Applicable to high-voltage electrical systems in commercial electric vehicles and public transportation vehicles with high power requirements.
Energy storage system:
Used for high-voltage connections in new energy storage equipment, such as wind and photovoltaic energy storage systems.
Fast charging station:
Supports high-voltage power transmission in electric vehicle fast charging stations.
3. Installation and maintenance
Tightening check:
Ensure the firmness of the wiring harness and connector during installation to prevent loosening caused by vehicle vibration.
Regular maintenance:
Regularly check the connector status to ensure the reliability of the electrical connection and avoid failures caused by aging or damage.
4. Summary
Aohua New Energy High-voltage Electric Control Harness Connector has played an important role in new energy vehicles and related energy fields with its high voltage tolerance, excellent safety and reliability. It ensures the stability of the high-voltage power system and supports efficient energy transmission and management.
Rated voltage: 300V to 1000V, some systems can reach 1500V.
Rated current: 40A to 500A, depending on the specific application.
Operating temperature: -40°C to +125°C, adapting to a wide range of ambient temperature changes.
Protection level: IP67 and above, ensuring normal operation under harsh conditions.
