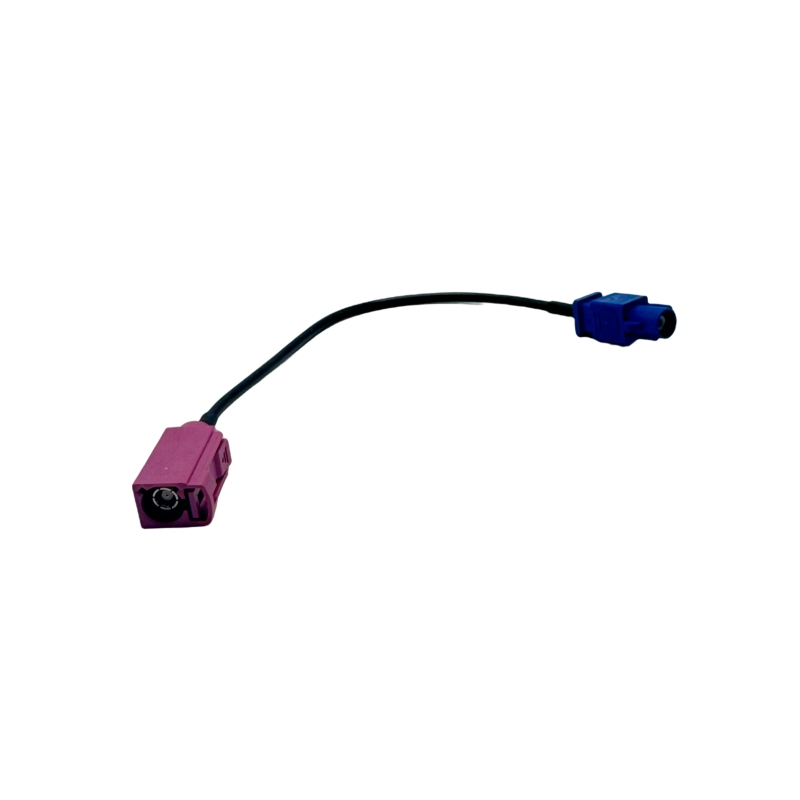

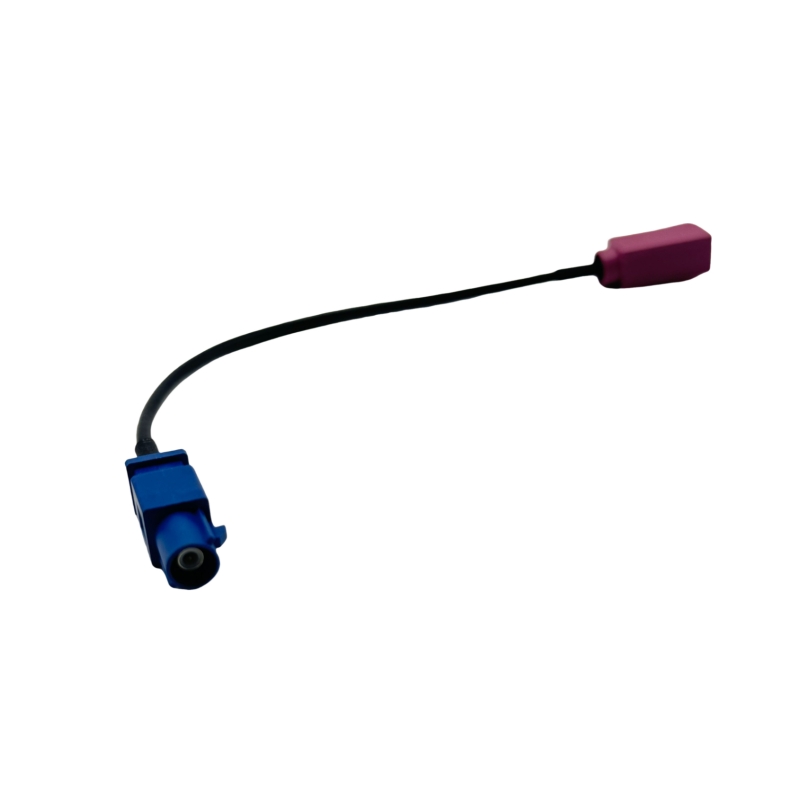

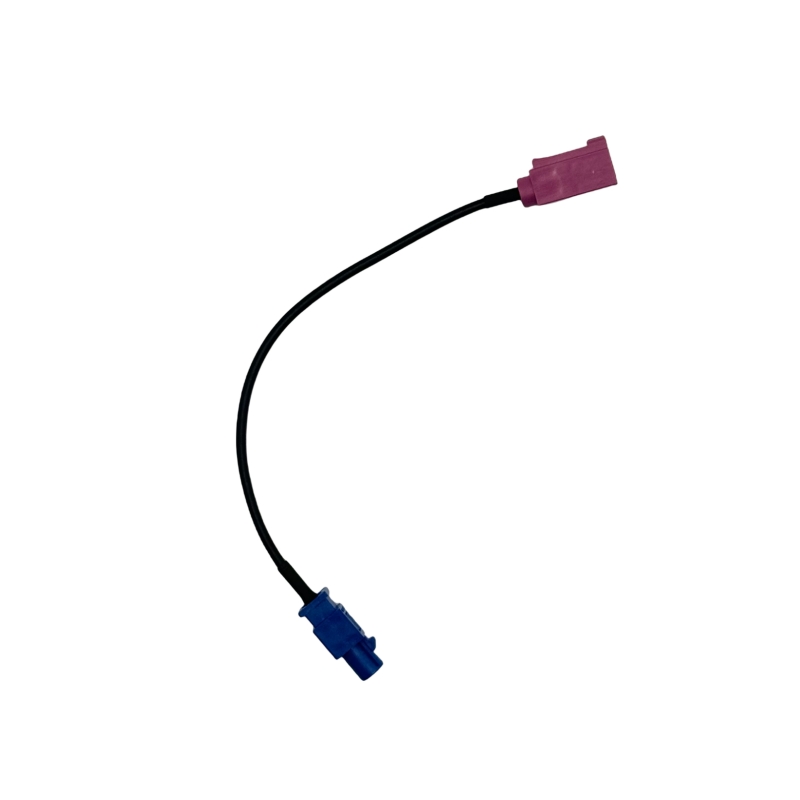

AM/FM Wiring Harness
Fakra AM/FM wiring harness is a cable assembly specifically designed to connect AM/FM radio receivers in car audio systems. Fakra connectors are widely used in the automotive electronics field due to their reliability and anti-interference capabilities.
1. Product Features
Excellent signal transmission:
Fakra connectors are designed for high-frequency signal transmission, ensuring high-quality reception of audio signals and reducing signal attenuation and interference.
Strong anti-interference ability:
Adopting a good shielding design, it effectively resists electromagnetic interference (EMI) and ensures stable operation in the complex electrical environment of the vehicle.
Safe and reliable connection:
Fakra connectors have a lock design to ensure a firm connection and prevent loosening caused by vibration or driving.
High temperature resistance and corrosion resistance:
The use of high temperature resistant and corrosion resistant materials can adapt to changes in the internal environment of the car and ensure long-term stable connection.
Multiple specifications:
A variety of lengths and connector types are available to meet the needs of different models and audio equipment.
2. Technical parameters
Rated voltage: Usually 50V, depending on the use environment.
Operating frequency range: Supports signal reception in AM and FM bands, and the frequency range is usually 30MHz to 1GHz.
Operating temperature range: -40°C to +85°C, adapting to various environmental conditions.
Protection level: Generally IP67, which can prevent the intrusion of water and dust to ensure long-term stable operation.
3. Application Scenarios
Car Audio Systems:
Fakra AM/FM Harnesses are used to connect car radios to antennas to ensure high-quality broadcast signal reception.
Advanced Driver Assistance Systems (ADAS):
In some vehicles, harnesses may be used to integrate navigation and infotainment systems to provide an enhanced driving experience.
Other In-Vehicle Electronics:
Harnesses can be connected to other audio and information devices to support a variety of functions, such as Bluetooth connectivity, audio streaming, etc.
4. Installation and Maintenance
Proper Connection:
Ensure that Fakra connectors are firmly connected during installation to avoid signal interruption caused by vibration or improper operation.
Regular Inspection:
Regularly check the integrity of the harness to ensure that there is no wear, aging or damage to maintain the stability of signal transmission.
Waterproofing:
For exposed connectors, ensure that they have good waterproof and dustproof design to prevent moisture from entering and causing short circuits or failures.
Summary
Fakra AM/FM harnesses play an important role in modern car audio systems, ensuring stable reception of AM/FM broadcast signals and high-quality audio transmission. Its design fully considers the complexity and high safety requirements of the automotive environment and is an important part of the car audio and infotainment system.
