Driver Monitoring System

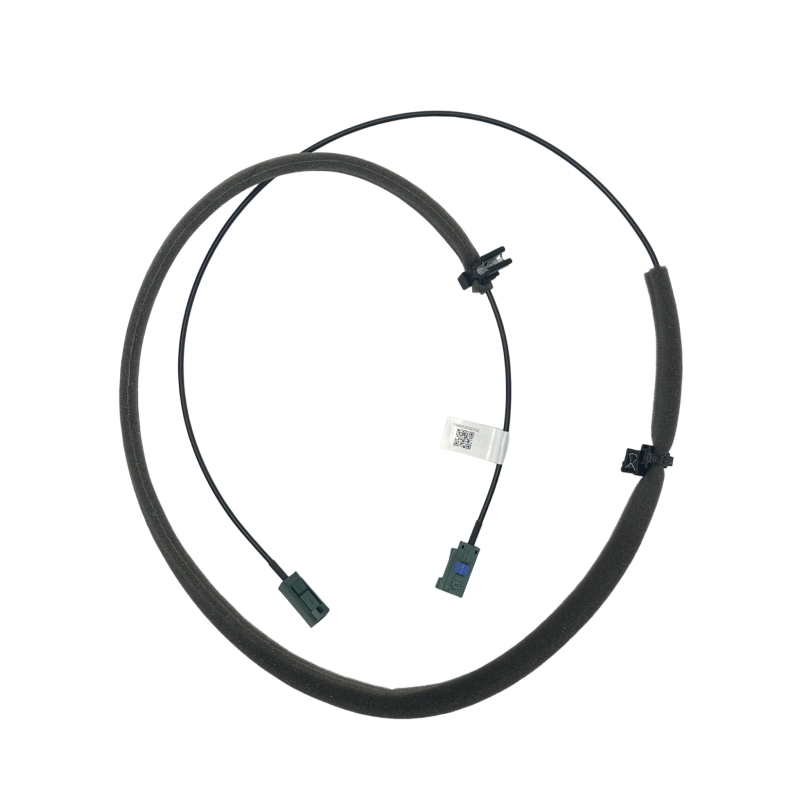

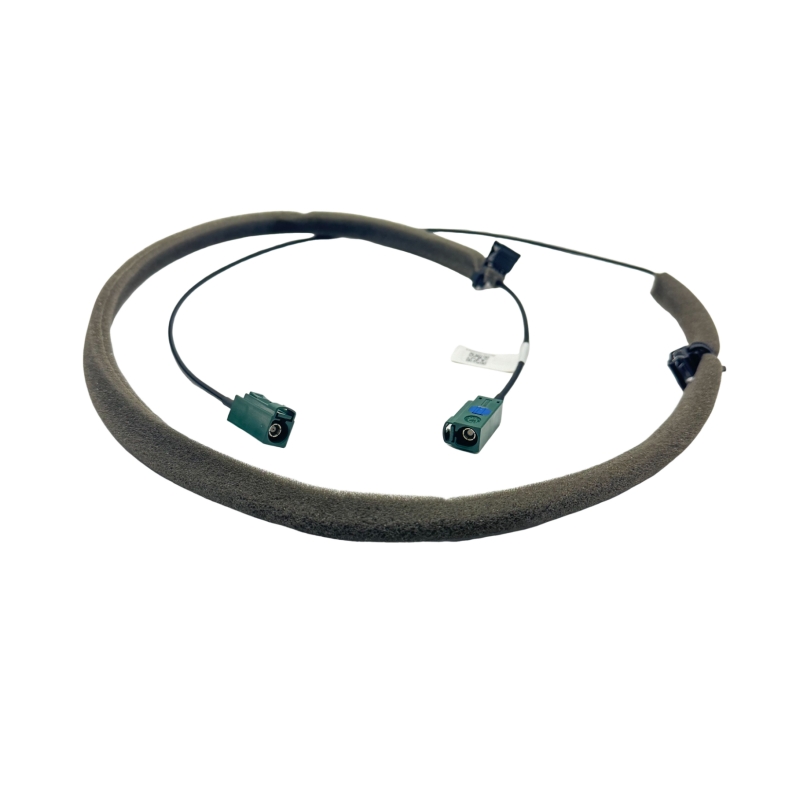

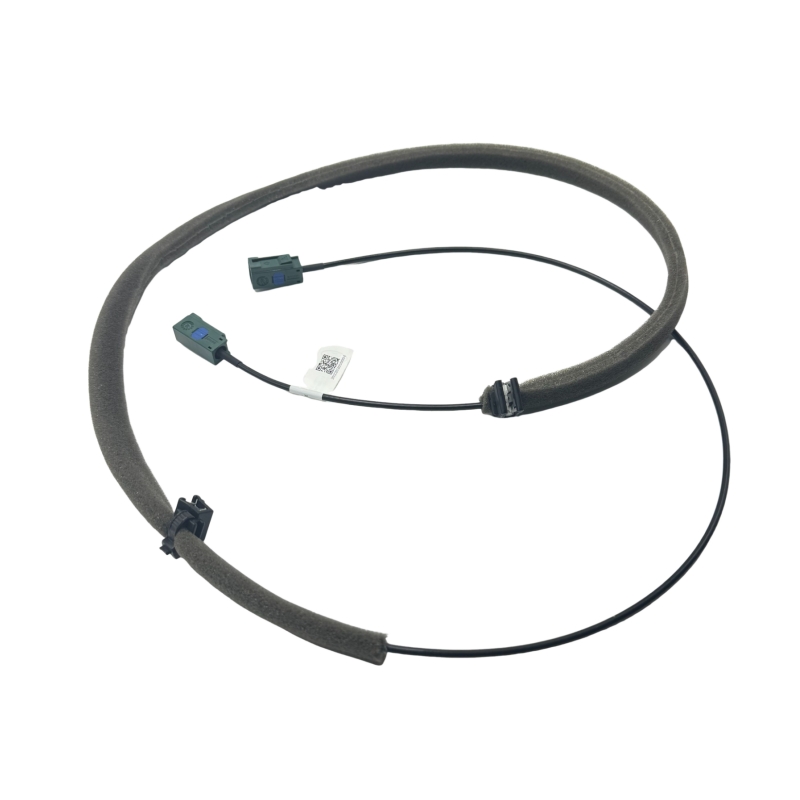

The DMS (Driver Monitoring System) camera harness is an electrical connection component designed specifically for the driver monitoring system. This harness is mainly used to connect the camera to the car's electronic control unit (ECU) to monitor the driver's status and behavior and improve driving safety.
1. Product Features
High signal transmission quality:
Adopt high-quality conductors and shielding design to ensure high-quality transmission of video signals and reduce signal interference and attenuation.
Strong anti-interference ability:
The wiring harness design can resist electromagnetic interference (EMI) and ensure stability in the complex electrical environment of the vehicle.
Flexibility and adaptability:
The design is flexible and easy to install, which can adapt to the location requirements of different models and cameras.
High temperature resistance and corrosion resistance:
The use of high temperature resistant and corrosion resistant materials can adapt to the changes in the internal and external environment of the car and ensure long-term reliable operation.
High safety:
With short circuit protection and overload protection, it reduces the risk caused by electrical failure.
2. Technical parameters
Rated voltage: generally 12V or 24V, depending on the design of the vehicle electrical system.
Rated current: usually between 1A and 5A, to meet the power requirements of the DMS system.
Operating temperature range: -40°C to +85°C, to ensure normal operation under various environmental conditions.
Protection level: usually IP67, which can prevent the intrusion of water and dust and is suitable for vehicle use.
3. Application scenarios
Driver monitoring system:
DMS camera harness connects the camera and the vehicle electronic control unit to monitor the driver's eye status, facial expressions and concentration, and prevent fatigue driving and distracted driving.
Safety assistance system:
In ADAS (Advanced Driver Assistance System), the DMS system is combined to monitor the driver's status and provide safety warnings.
Vehicle internal information system:
Integrated with other internal monitoring equipment to provide data support for the intelligent management of the vehicle.
4. Installation and maintenance
Correct connection:
Ensure that the connector is firmly connected during installation to avoid signal interruption due to vibration or improper operation.
Regular inspection:
Regularly check the wear of the harness and connector to ensure that there is no aging or damage to maintain the normal operation of the system.
Waterproof treatment:
For the exposed connection parts, ensure good waterproof protection to prevent moisture intrusion and cause short circuit or failure.
Summary
DMS camera harness plays an important role in the driver monitoring system of modern cars, ensuring stable connection and high-quality signal transmission between the camera and the vehicle electronic system. Its design fully considers the complexity and high safety requirements of the automotive environment, and aims to improve driving safety and driving experience.
