Camera Harness

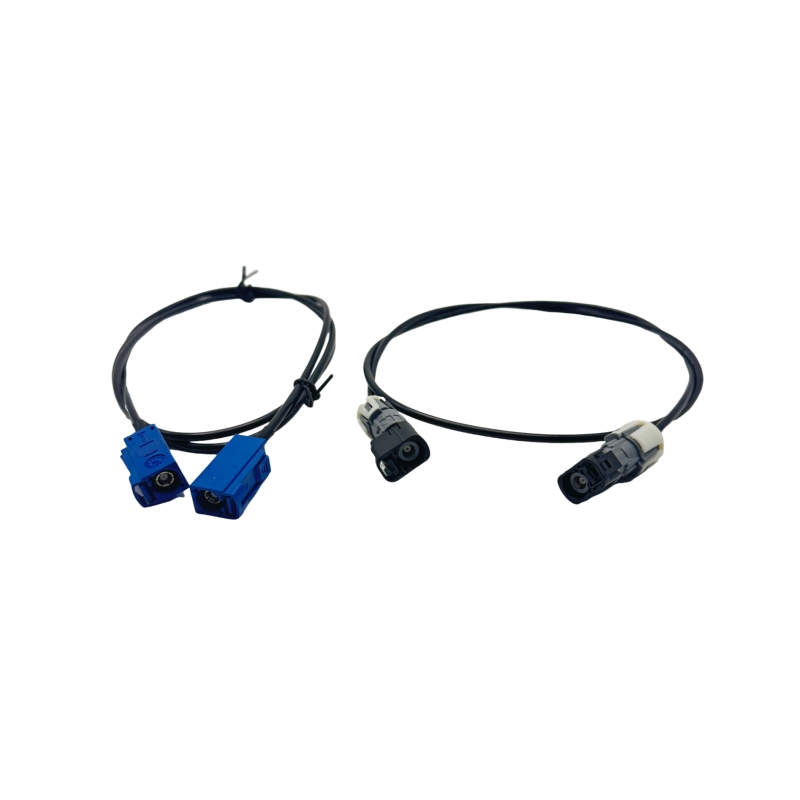

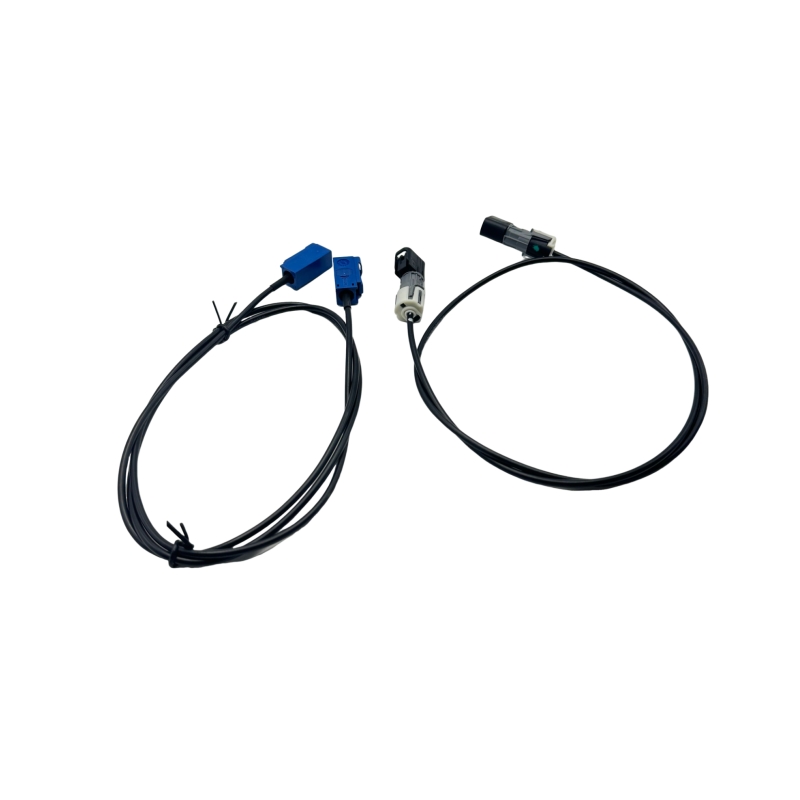

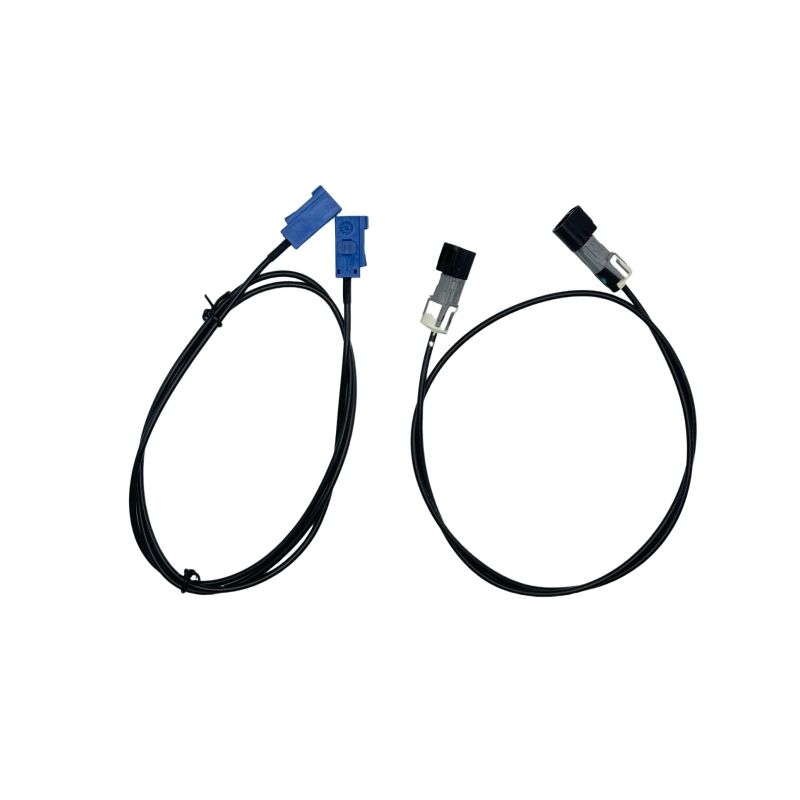

Fakra camera harness is a cable assembly dedicated to camera systems, especially suitable for video signal transmission in automobiles and other electronic devices. Fakra connectors are widely used in the field of automotive electronics due to their excellent anti-interference ability and safety.
1. Product Features
High signal integrity:
Fakra connectors are designed for high-frequency signal transmission, which can maintain excellent signal integrity and reduce signal attenuation and interference.
Strong anti-interference ability:
With good shielding performance, it can effectively resist electromagnetic interference (EMI) and ensure stable transmission of video signals.
High safety:
Fakra connectors adopt a locking design to ensure a firm connection and are not easy to fall off, suitable for high vibration and dynamic environments.
High temperature and corrosion resistance:
Adopting high-performance materials, it can withstand high temperature, humidity and corrosive substances in the automotive environment.
Flexibility and diversity:
Fakra connectors are available in a variety of colors and types, which are easy to distinguish and install, and support a variety of connection needs.
2. Technical parameters
Rated voltage: generally 50V, depending on the use environment.
Rated current: usually around 1A, suitable for low-power devices.
Operating temperature range: -40°C to +85°C, adapt to various environmental conditions.
Connector type: Fakra connectors and related harnesses are of various types, usually used in conjunction with other connectors (such as coaxial cables).
3. Application scenarios
Automotive camera system:
In applications such as reversing images, 360-degree surround view, and ADAS (Advanced Driver Assistance System), Fakra camera harnesses are used to connect cameras to vehicle electronic control units to ensure high-quality video transmission.
In-vehicle entertainment system:
Connect vehicle navigation, display screens, and cameras to achieve real-time video streaming transmission.
Security monitoring equipment:
In vehicle monitoring systems, Fakra harnesses are used to connect monitoring cameras to central control systems to provide stable monitoring videos.
4. Installation and maintenance
Correct connection:
During installation, ensure that the Fakra connector is firmly connected to prevent signal interruption caused by vibration or improper operation.
Regular inspection:
Regularly check the wear and aging of the harness to ensure that the connector is not damaged and maintain the reliability of signal transmission.
Summary
Fakra camera harnesses play a vital role in automobiles and other electronic devices, ensuring the normal operation of various camera systems through efficient video signal transmission. Its excellent anti-interference performance, durability, and flexibility make it an ideal choice for modern automotive electronic applications and are widely used in security, monitoring, and infotainment systems.
